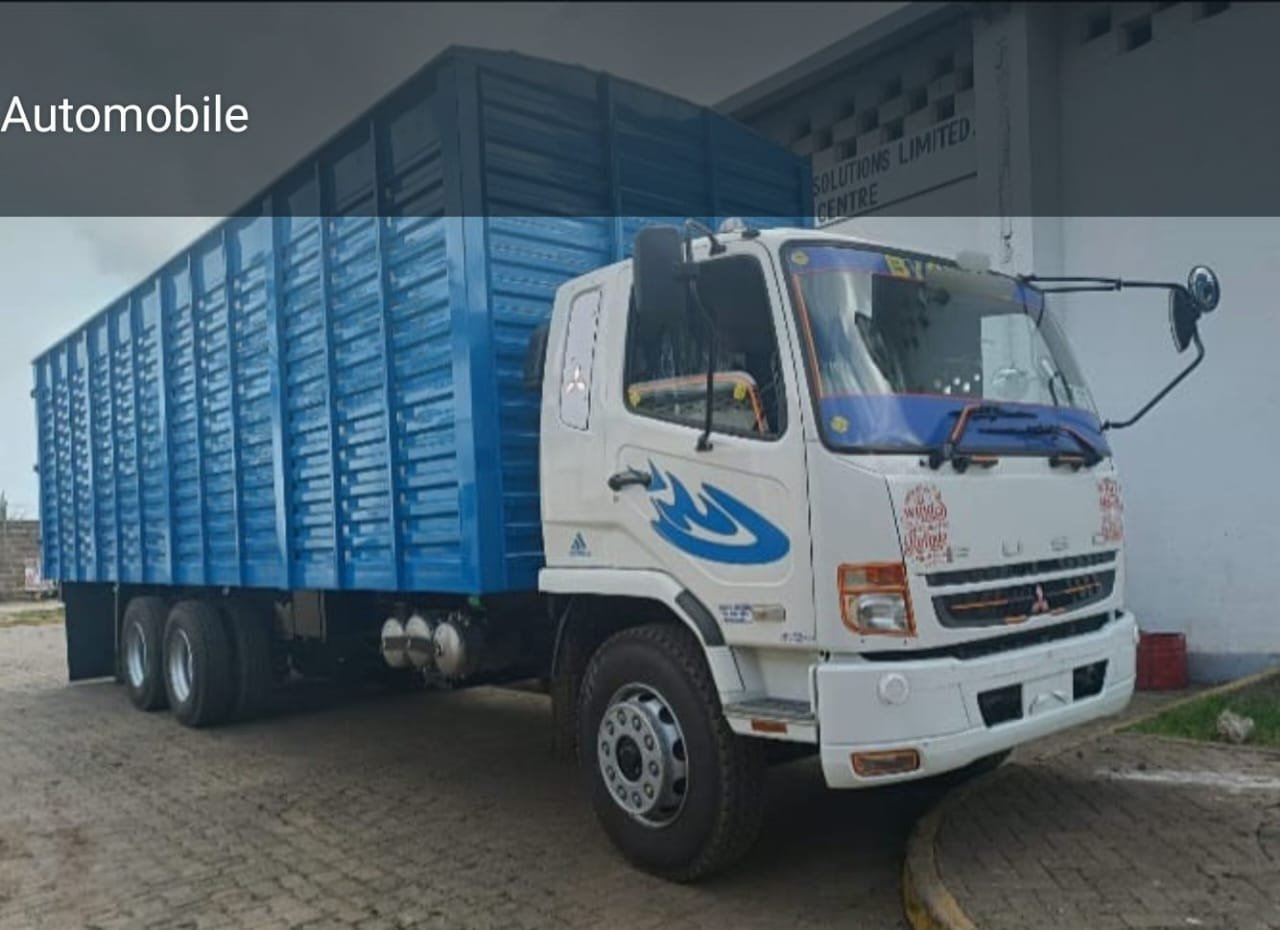

MODEL

FN-62

MODEL CODE

FN62FU6RB11

DRIVE SYSTEM

6x4

DIMENSIONS

Wheelbase

7190mm

Overall length

11950mm

Overall width

2445mm

Overall height, approx.

2685mm

WEIGHTS

Kerb weight

7625 kg

Front axle weight

6000 kg

First rear axle weight

10000 kg

Second rear axle weight

10000 kg

Max. G.V.W.

26000kg

CALCULATED PERFORMANCE

Max Speed (km/h)

80 (Speed limiter - 80kmph)

Max. Gradeability

52%

Min.Turning circle diameter (m)

10.9

ENGINE

Model

Mitsubishi 6M60-DAT6

Type

4 stroke-cycle, water cooled direct injection turbo charged diesel engine

No. of Cylinders

6; inline

Max. Power

199kW (267hp) @ 2,400rpm

Max. Torque (Nm)

880Nm @ 1,200-2,000rpm

Piston Displacement

7545cc

Emission

EURO 4

DRIVE-LINE

Clutch (380mm)

Hydraulic control, coil spring type, single dry plate with air pressure assistance

Transmission

9 Forward & 1 Reverse

AXLE

Front axle

Reverse Elliott, I - beam

Rear axle

Full floating, Hypoid gears

TIRES AND WHEELS

Tire size

11R22.5 148/145

Tire and disc wheels

Single front, Dual rear

STEERING SYSTEM

Steering column

Ball nut type with integral tupe hdraulic power booster

SUSPENSION

Front spring

Laminated leaf springs with shock absorbers

Rear spring

Long taper leaf springs with trunnion base and radius rods

BRAKES

Service brakes

Full air, dual circuit, wedge type drum brakes

Parking Brake

Spring loaded type on rear wheels by hand control valve

ABS

Standard

Auxiliary brake – Exhaust

ELECTRICAL SYSTEM

System Voltage

24 volt

FUEL TANK

Main tank capacity

400 L (200 + 200)

Fuel tank cap

Lockable

CAB

Type

All steel, tilt cab
