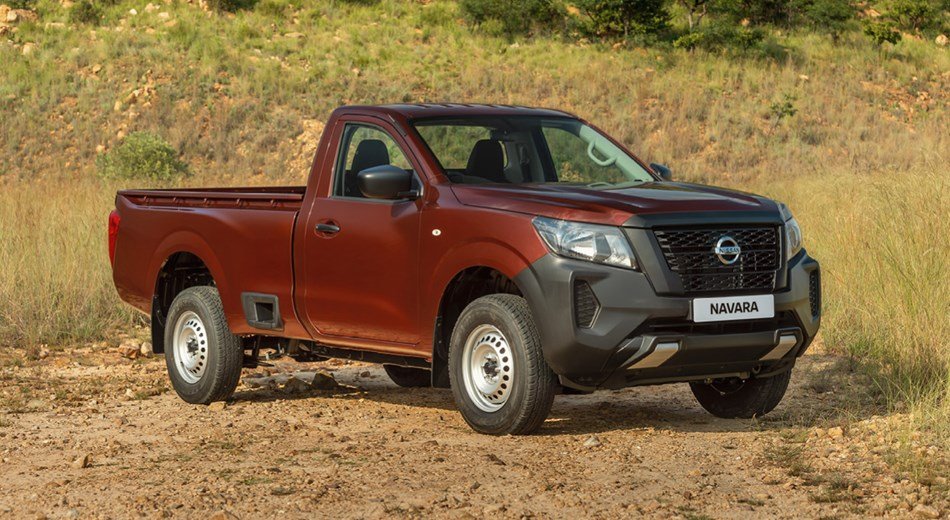

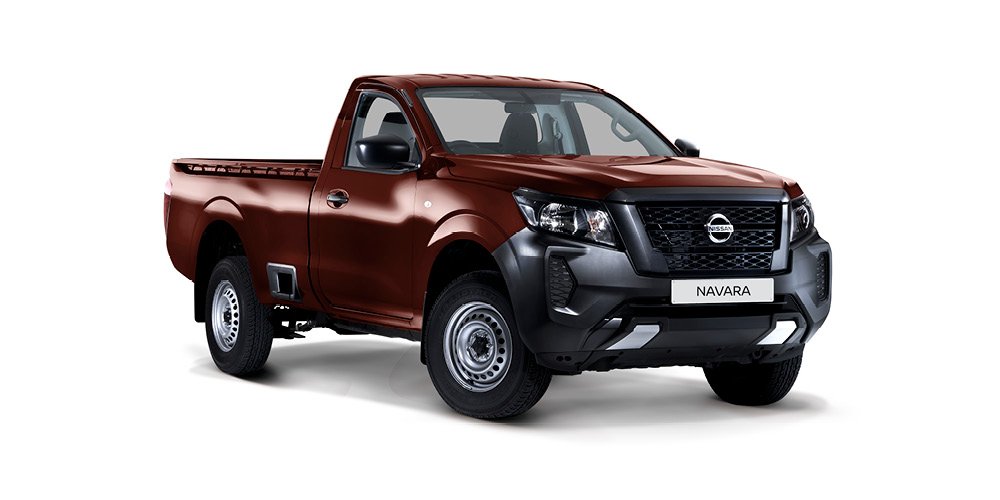

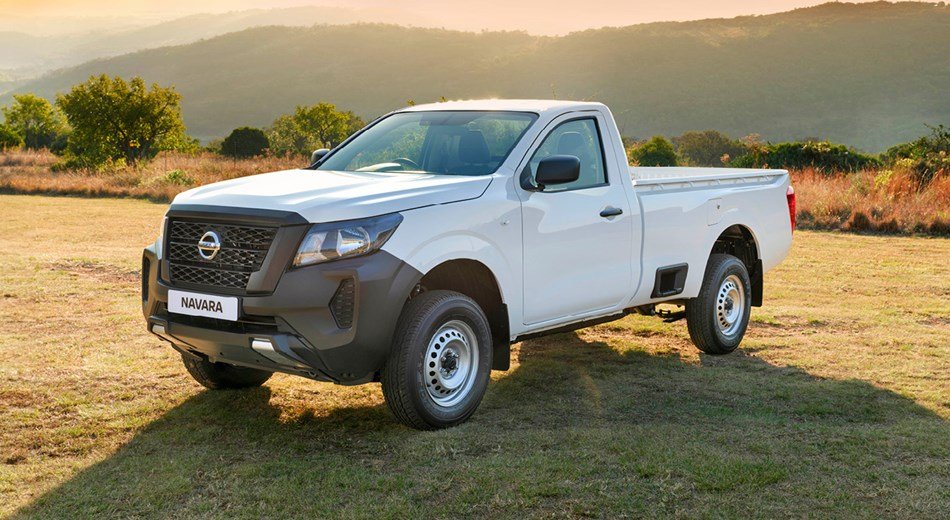

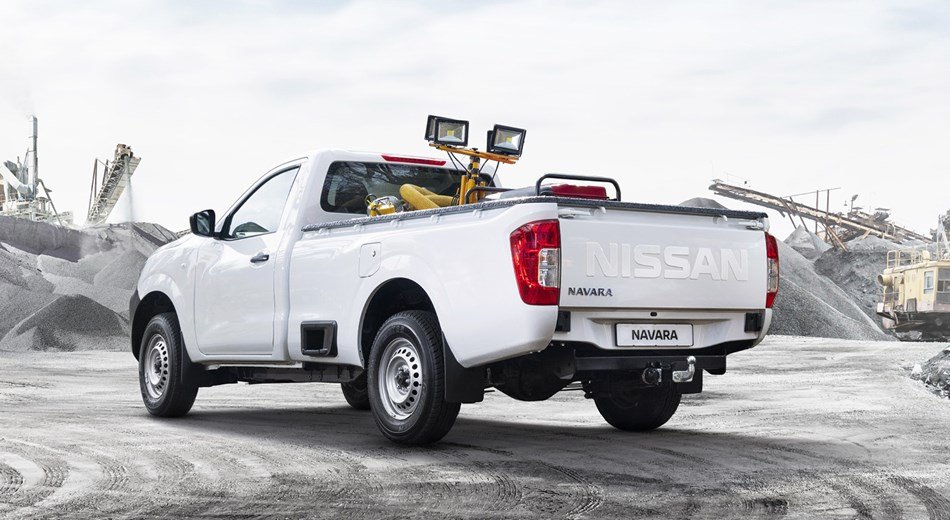

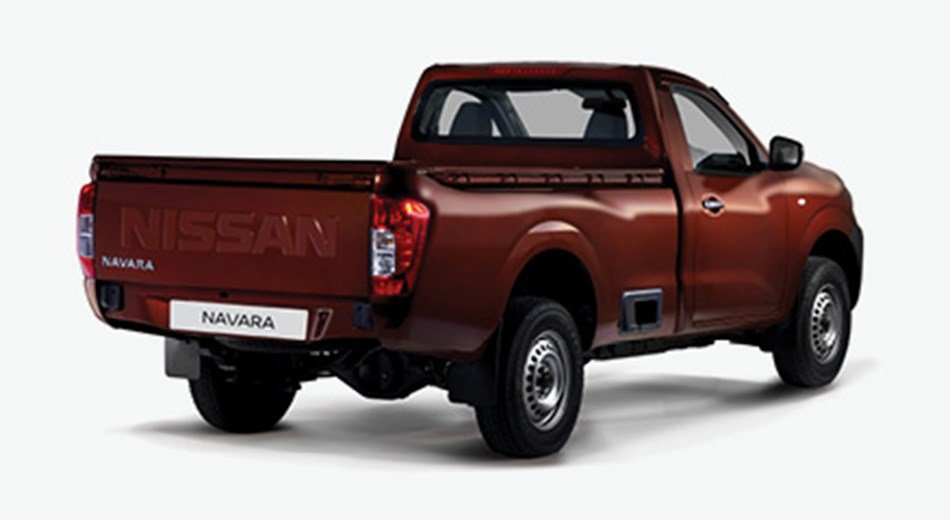

Navera Single Cab - 4 Wheel Drive
|
MODEL - Single Cab 2.5D XE 4WD MT 2.5D XE Plus 4WD MT |
|||
|

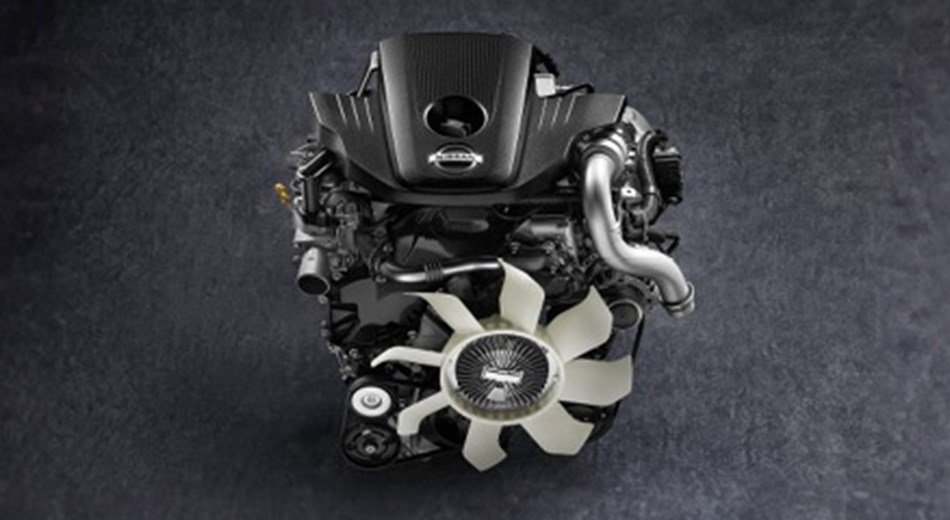

ENGINE |
|||
|
Engine |
|
2.5D Mid Output |
2.5D Mid Output |
|
Displacement |
cc |
2488 |
2488 |
|
Number of Cylinders |
|
4 |
4 |
|
Air Intake |
|
Turbo Charged |
Turbo Charged |
|
Bore and Stroke |
mm |
89.0 x 100.0 |
89.0 x 100.0 |
|
Maximum Power |
kW/Rpm |
120/3600 |
120/3600 |
|
Maximum Torque |
Nm/Rpm |
403/2000 |
403/2000 |
|
Fuel Type |
|
Diesel |
Diesel |
|
Fuel Supply |
|
Common Rail Direct Injection |
Common Rail Direct Injection |
|
Fuel Tank Capacity |
ℓ |
80 |
80 |
|
TRANSMISSION & DRIVE TRAIN |
|||
|
Transmission |
|
6-Speed Manual |
6-Speed Manual |
|
Driven Wheels |
|
4WD |
4WD |
|
Rear Limited Slip-Differential |
|
Std |
Std |
|

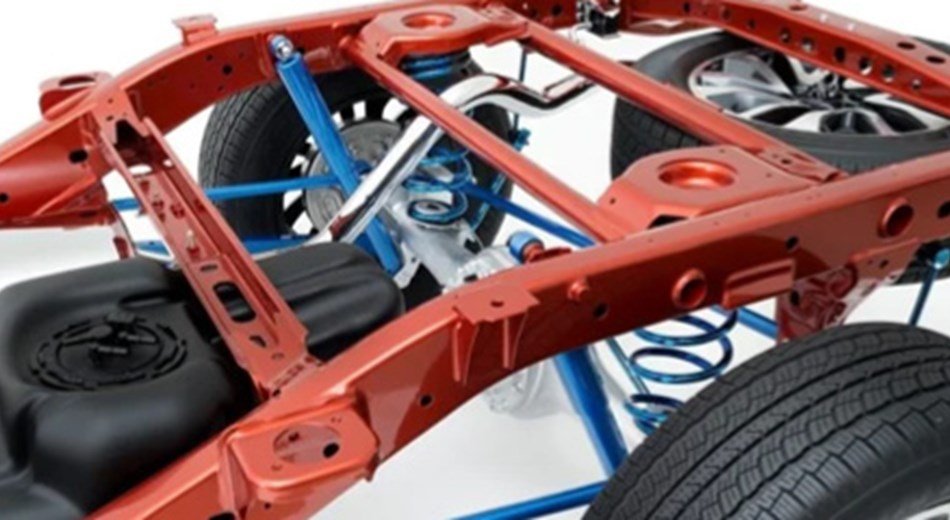

SUSPENSION |
|||
|
Front Suspension |
|
Independent Double-Wishbone + Stabiliser + Global Posture |
Independent Double-Wishbone + Stabiliser + Global Posture |
|
Rear Suspension |
|
Leaf Spring + Global Posture |
Leaf Spring + Global Posture |
|
WEIGHTS & CAPACITY |
|||
|
Gross Combination Mass (GCM) |
Kg |
6130 |
6130 |
|
Gross Vehicle Mass (GVM) |
Kg |
3000 |
3000 |
|
Tare Mass |
Kg |
1796 |
1796 |
|
Payload |
Kg |
1155 |
1155 |
|
Min Kerb Weight |
Kg |
1845 |
1845 |
|
Max Kerb Weight |
Kg |
1866 |
1866 |
|
Permissible Axle Weight Front |
Kg |
1320 |
1320 |
|
Permissible Axle Weight Rear |
Kg |
1785 |
1785 |
|
Maximum Towing Capacity Unbraked |
Kg |
750 |
750 |
|
Maximum Towing Capacity Braked |
Kg |
3500 |
3500 |
|
DIMENSIONS |
|||
|
Overall Length |
mm |
5235 |
5235 |
|
Overall Width (Excluding Mirrors) |
mm |
1790 |
1790 |
|
Overall Height |
mm |
1760 |
1760 |
|
Wheelbase |
mm |
3150 |
3150 |
|
Ground Clearance |
mm |
214 |
214 |
|
Front Track |
mm |
1550 |
1550 |
|
Rear Track |
mm |
1550 |
1550 |
|
Front Overhang |
mm |
885 |
885 |
|
Rear Overhang |
mm |
1200 |
1200 |
|
Turning Circle (Kerb to Kerb) |
m |
6,0 |
6,0 |
|
Approach Angle |
Degrees |
31,8 |
31,8 |
|
Departure Angle |
Degrees |
26,3 |
26,3 |
|
Ramp Break-Over Angle |
Degrees |
22,8 |
22,8 |
|

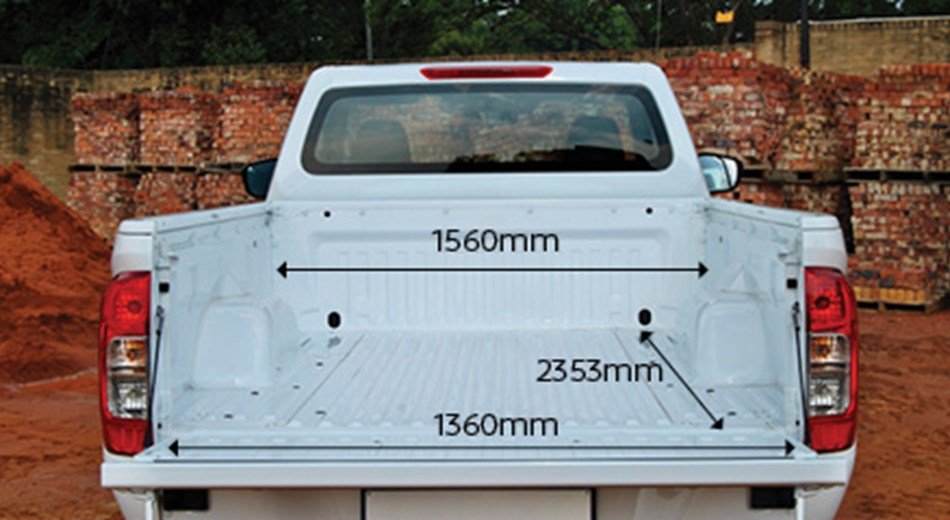

Load Box Length - Floor |
mm |
2353 |
2353 |
|
Load Box Length - Top |
mm |
2311 |
2311 |
|
MODEL - Single Cab 2.5D XE 4WD MT 2.5D XE Plus 4WD MT |
|||
|
DIMENSIONS (CONTINUED) |
|||
|
Load Box Width - Floor |
mm |
1560 |
1560 |
|
Load Box Width - Top |
mm |
1552 |
1552 |
|
Load Box Width - Between Wheel Arches |
mm |
1134 |
1134 |
|
Load Box Width - Tailgate Opening |
mm |
1360 |
1360 |
|
Load Box Height |
mm |
471,7 |
471,7 |
|
Wading Depth |
mm |
450 |
450 |
|

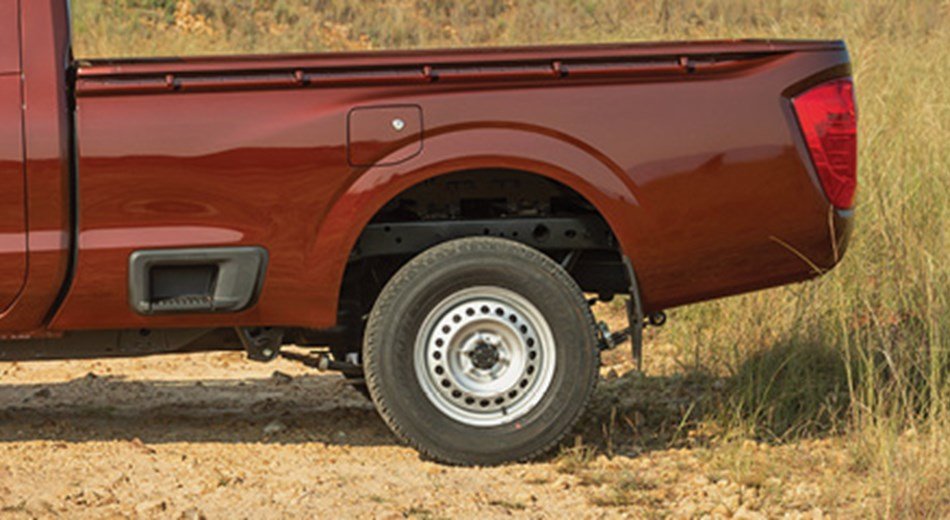

WHEELS & TYRES |
|||
|
Wheel Size and Type |
|
16" Steel |
16" Steel |
|
Tyre |
|
205/ R16 AT |
205/ R16 AT |
|
Spare Wheel |
|
Full Size Steel |
Full Size Steel |
|
Spare Wheel Lock |
|
Option |
Option |
|
EXTERIOR |
|||
|
Grill |
|
Black |
Black |
|
Front Bumper |
|
Black |
Black |
|
Rear Step Bumper |
|
- |
- |
|
Side-Door Mirror Finish |
|
Black |
Black |
|
Side-Door Mirrors |
|
Manual Adjustment + Manual Folding |
Manual Adjustment + Manual Folding |
|
External Door Handles |
|
Black |
Black |
|
Front and Rear Mud Flaps |
|
Std |
Std |
|
Front Towing Hook |
|
Std |
Std |
|
Headlights |
|
Halogen |
Halogen |
|
Fog Lights |
|
- |
- |
|
COMFORT & CONVENIENCE |
|||
|

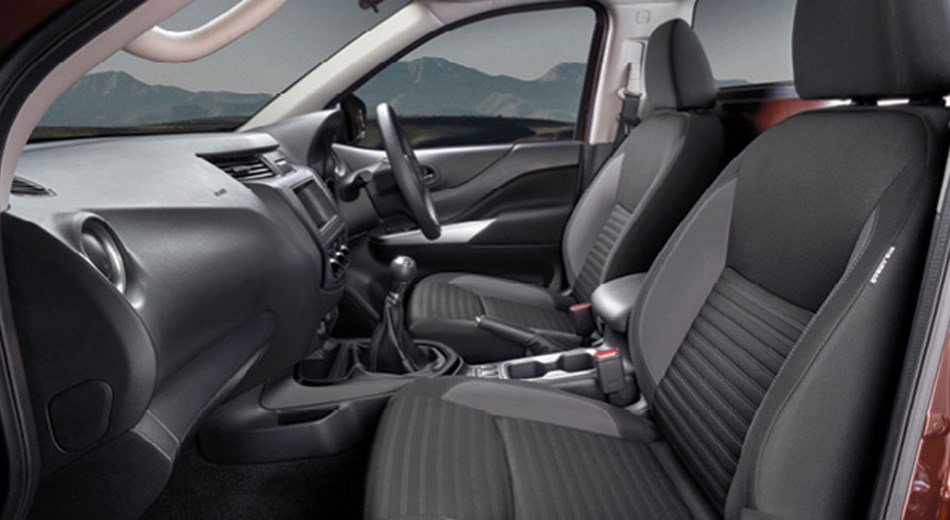

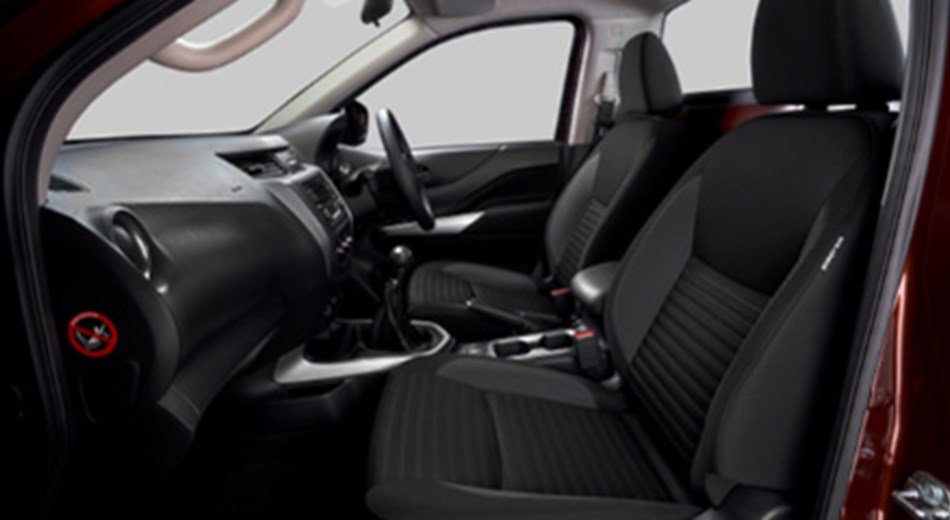

Seating Capacity |
|
2 |
2 |
|
Front Seat Type |
|
Separate Seat |
Separate Seat |
|
Driver Seat Adjustment |
|
4-Way Manual (Slide + Recline) |
4-Way Manual (Slide + Recline) |
|
Passenger Seat Adjustment |
|
2-Way Manual |
2-Way Manual |
|
Seat Upholstery |
|
Cloth |
Cloth |
|
Floor Material |
|
Cloth |
Cloth |
|
Front Cup Holders |
|
2 |
2 |
|
Front Door Storage Pockets and Bottle Holder |
|
2 |
2 |
|
Sunglass Holder |
|
- |
- |
|
12V Outlet Inside Cabin |
|
2 |
2 |
|

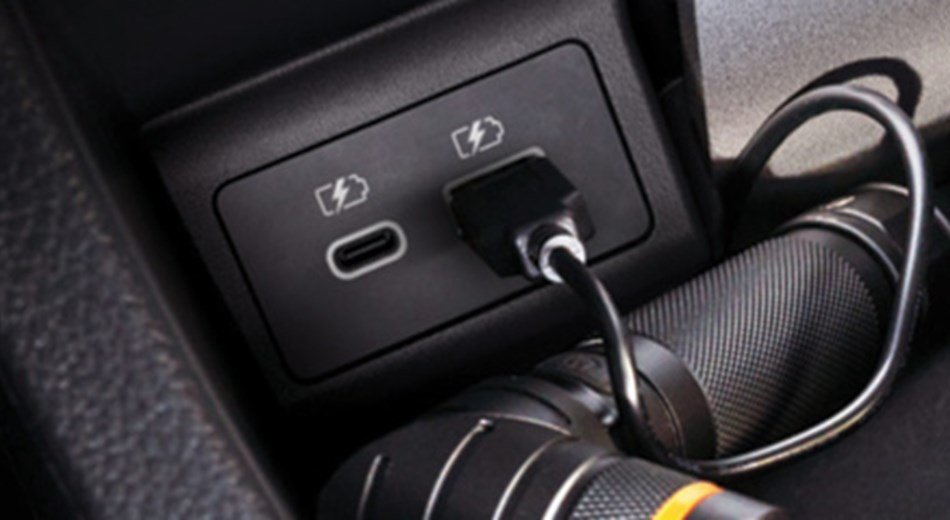

USB Port |
|
- |
- |
|
Air-Conditioning |
|
Manual Aircon |
Manual Aircon |
|
Windows Adjustment |
|
Manual |
Manual |
|
Power Windows with Driver Auto Up/Down Button |
|
- |
- |
|
Rear Window Screen |
|
Fixed |
Fixed |
|
Central Locking |
|
- |
- |
|
Speed Sensing Auto Door Lock |
|
- |
- |
|
Key Opener |
|
Mold key |
Mold key |
|
Rear View Mirror |
|
Manual Dimming |
Manual Dimming |
|
MODEL - Single Cab 2.5D XE 4WD MT 2.5D XE Plus 4WD MT |
|||
|
AUDIO & CONNECTIVITY |
|||
|
Without Audio Head Unit (with Pre-Wire) |
|
Std |
Std |
|
8'' Touch Screen Display |
|
- |
- |
|
Steering Wheel Audio Controls |
|
- |
- |
|
Nissan Connect (with Android AutoTM and Apple CarPlay®) |
|
- |
- |
|
Navigation |
|
- |
- |
|
Speakers |
|
No Speakers (With Pre-Wire Harness) |
No Speakers (With Pre-Wire Harness) |
|
SAFETY & SECURITY |
|||
|
Driver and Front Passenger Airbags |
|
Std |
Std |
|
Side Airbags |
|
- |
Std |
|
Curtain Airbags |
|
- |
Std |
|
Driver Knee Airbag |
|
- |
Std |
|
Front Seat Belts 3-Point ELR With Pre-Tensioner, Load Limiter |
|
Std |
Std |
|
Seatbelt Reminder |
|
Driver Only |
Driver & Passenger |
|
Immobiliser |
|
Std |
Std |
|
Alarm |
|
- |
- |
|
Anti-Lock Braking System (ABS) |
|
Std |
Std |
|
Electronic Brake Force Distribution (EBD) |
|
Std |
Std |
|
Brake Assist (BA) |
|
Std |
Std |
|
Vehicle Dynamic Control (VDC) |
|
- |
Std |
|
Trailer Stability Assist (SA) |
|
- |
Std |
|
Hill Start Assist (HSA) |
|
- |
Std |
|
Hill Descent Control (HDC) |
|
- |
Std |
|
Rear-View Camera and Parking Sensors |
|
- |
- |
|
Cruise Control |
|
- |
- |
|
Front Brakes - Discs |
|
Std |
Std |
|
Rear Brakes - Drum |
|
Std |
Std |
|
Windscreen Wipers |
|
Variable Intermittent + Speed Sensitive |
Variable Intermittent + Speed Sensitive |
|
SERVICE |
|||
|
Service interval |
|
5,000 Km |
5,000 Km |

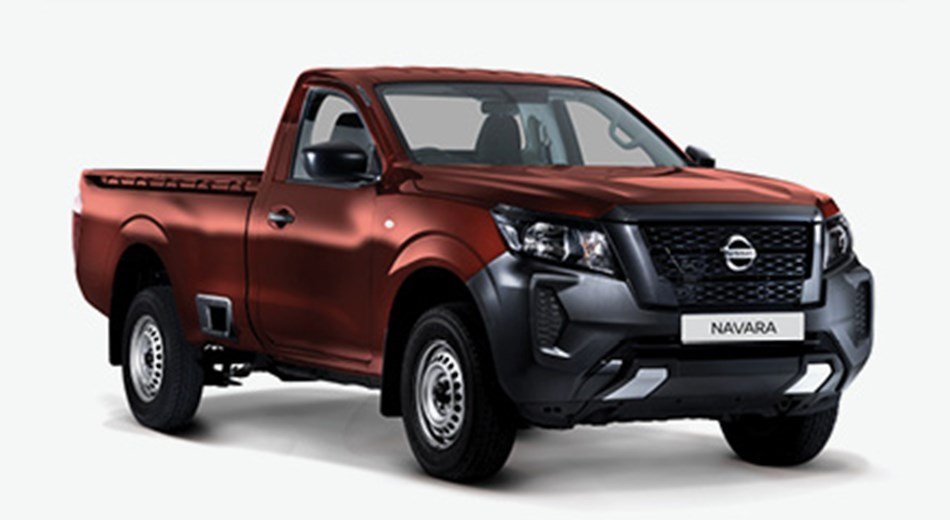

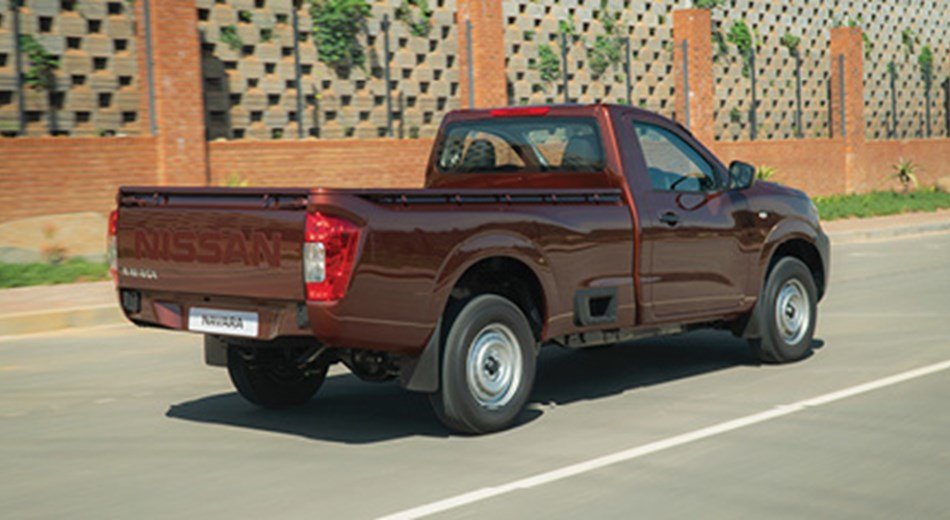

Navera Single Cab - 2 Wheel Drive
|
MODEL - Single Cab 2.5D XE 2WD MT 2.5D XE Plus 2WD MT |
|||
|
ENGINE |
|||
|
Engine |
|
2.5D Mid Output |
2.5D Mid Output |
|
Displacement |
cc |
2488 |
2488 |
|
Number of Cylinders |
|
4 |
4 |
|
Air Intake |
|
Turbo Charged |
Turbo Charged |
|
Bore and Stroke |
mm |
89.0 X 100.0 |
89.0 X 100.0 |
|
Maximum Power |
kW/Rpm |
120/3600 |
120/3600 |
|
Maximum Torque |
Nm/Rpm |
403/2000 |
403/2000 |
|
Fuel Type |
|
Diesel |
Diesel |
|
Fuel Supply |
|
Common Rail Direct Injection |
Common Rail Direct Injection |
|
Fuel Tank Capacity |
ℓ |
80 |
80 |
|
TRANSMISSION & DRIVE TRAIN |
|||
|
Transmission |
|
6-Speed Manual |
6-Speed Manual |
|
Driven Wheels |
|
2WD |
2WD |
|
Rear Limited Slip-Differential |
|
- |
- |
|
SUSPENSION |
|||
|
Front Suspension |
|
Independent Double-Wishbone + Stabiliser + Global Posture |
Independent Double-Wishbone + Stabiliser + Global Posture |
|
Rear Suspension |
|
Leaf Spring + Global Posture |
Leaf Spring + Global Posture |
|
WEIGHTS & CAPACITY |
|||
|
Gross Combination Mass (GCM) |
Kg |
6130 |
6130 |
|
Gross Vehicle Mass (GVM) |
Kg |
2950 |
2950 |
|
Tare Mass |
Kg |
1706 |
1706 |
|
Payload |
Kg |
1185 |
1185 |
|
Min Kerb Weight |
Kg |
1765 |
1765 |
|
Max Kerb Weight |
Kg |
1786 |
1786 |
|
Permissible Axle Weight Front |
Kg |
1320 |
1320 |
|
Permissible Axle Weight Rear |
Kg |
1785 |
1785 |
|
Maximum Towing Capacity Unbraked |
Kg |
750 |
750 |
|
Maximum Towing Capacity Braked |
Kg |
3500 |
3500 |
|
DIMENSIONS |
|||
|
Overall Length |
mm |
5235 |
5235 |
|
Overall Width (Excluding Mirrors) |
mm |
1790 |
1790 |
|
Overall Height |
mm |
1755 |
1755 |
|
Wheelbase |
mm |
3150 |
3150 |
|
Ground Clearance |
mm |
214 |
214 |
|
Front Track |
mm |
1550 |
1550 |
|
Rear Track |
mm |
1550 |
1550 |
|
Front Overhang |
mm |
885 |
885 |
|
Rear Overhang |
mm |
1200 |
1200 |
|
Turning Circle (Kerb to Kerb) |
m |
6,0 |
6,0 |
|
Approach Angle |
Degrees |
30,7 |
30,7 |
|
Departure Angle |
Degrees |
26,6 |
26,6 |
|
Ramp Break-Over Angle |
Degrees |
22,2 |
22,2 |
|
Load Box Length - Floor |
mm |
2353 |
2353 |
|
Load Box Length - Top |
mm |
2311 |
2311 |
|
MODEL - Single Cab 2.5D XE 2WD MT 2.5D XE Plus 2WD MT |
|||
|
DIMENSIONS (CONTINUED) |
|||
|
Load Box Width - Floor |
mm |
1560 |
1560 |
|
Load Box Width - Top |
mm |
1552 |
1552 |
|
Load Box Width - Between Wheel Arches |
mm |
1134 |
1134 |
|
Load Box Width - Tailgate Opening |
mm |
1360 |
1360 |
|
Load Box Height |
mm |
471,7 |
471,7 |
|
Wading Depth |
mm |
450 |
450 |
|
WHEELS & TYRES |
|||
|
Wheel Size and Type |
|
16" Steel |
16" Steel |
|
Tyre |
|
205/ R16 AT |
205/ R16 AT |
|
Spare Wheel |
|
Full Size Steel |
Full Size Steel |
|
Spare Wheel Lock |
|
Option |
Option |
|
EXTERIOR |
|||
|
Grill |
|
Black |
Black |
|
Front Bumper |
|
Black |
Black |
|
Rear Step Bumper |
|
- |
- |
|
Side-Door Mirror Finish |
|
Black |
Black |
|
Side-Door Mirrors |
|
Manual Adjustment + Manual Folding |
Manual Adjustment + Manual Folding |
|
External Door Handles |
|
Black |
Black |
|
Front and Rear Mud Flaps |
|
Std |
Std |
|
Front Towing Hook |
|
Std |
Std |
|
Headlights |
|
Halogen |
Halogen |
|
Fog Lights |
|
- |
- |
|
COMFORT & CONVENIENCE |
|||
|
Seating Capacity |
|
2 |
2 |
|
Front Seat Type |
|
Separate Seat |
Separate Seat |
|
Driver Seat Adjustment |
|
4-Way Manual (Slide + Recline) |
6-Way Manual (Slide + Recline+ Lifter) |
|
Passenger Seat Adjustment |
|
2-Way Manual (Recline) |
4-Way Manual (Slide + Recline) |
|
Seat Upholstery |
|
Vinyl |
Cloth |
|
Floor Material |
|
Vinyl |
Carpet |
|
Front Cup Holders |
|
2 |
2 |
|
Front Door Storage Pockets and Bottle Holder |
|
2 |
2 |
|
Sunglass Holder |
|
- |
- |
|
12V Outlet Inside Cabin |
|
1 |
1 |
|
USB Port |
|
- |
- |
|
Air-Conditioning |
|
Manual Aircon |
Manual Aircon |
|
Windows Adjustment |
|
Manual |
Manual |
|
Power Windows with Driver Auto Up/Down Button |
|
- |
- |
|
Rear Window Screen |
|
Fixed |
Fixed |
|
Central Locking |
|
- |
- |
|
Speed Sensing Auto Door Lock |
|
- |
- |
|
Key Opener |
|
Mold Key |
Mold Key |
|
Rear View Mirror |
|
Manual Dimming |
Manual Dimming |
|
MODEL - Single Cab 2.5D XE 2WD MT 2.5D XE Plus 2WD MT |
|||
|
AUDIO & CONNECTIVITY |
|||
|
Without Audio Head Unit (with Pre-Wire) |
|
Std |
Std |
|
8'' Touch Screen Display |
|
- |
- |
|
Steering Wheel Audio Controls |
|
- |
- |
|
Nissan Connect (with Android AutoTM and Apple CarPlay®) |
|
- |
- |
|
Navigation |
|
- |
- |
|
Speakers |
|
No Speakers (With Pre-Wire Harness) |
No Speakers (With Pre-Wire Harness) |
|
SAFETY & SECURITY |
|||
|
Driver and Front Passenger Airbags |
|
Std |
Std |
|
Side Airbags |
|
- |
Std |
|
Curtain Airbags |
|
- |
Std |
|
Driver Knee Airbag |
|
- |
Std |
|
Front Seat Belts 3-Point ELR With Pre-Tensioner, Load Limiter |
|
Std |
Std |
|
Seatbelt Reminder |
|
Driver Only |
Driver & Passenger |
|
Immobiliser |
|
Std |
Std |
|
Alarm |
|
- |
- |
|
Anti-Lock Braking System (ABS) |
|
Std |
Std |
|
Electronic Brake Force Distribution (EBD) |
|
Std |
Std |
|
Brake Assist (BA) |
|
Std |
Std |
|
Vehicle Dynamic Control (VDC) |
|
- |
Std |
|
Trailer Stability Assist (SA) |
|
- |
Std |
|
Hill Start Assist (HSA) |
|
- |
Std |
|
Hill Descent Control (HDC) |
|
- |
- |
|
Rear-View Camera and Parking Sensors |
|
- |
- |
|
Cruise Control |
|
- |
- |
|
Front Brakes - Discs |
|
Std |
Std |
|
Rear Brakes - Drum |
|
Std |
Std |
|
Windscreen Wipers |
|
Variable Intermittent + Speed Sensitive |
Variable Intermittent + Speed Sensitive |
|
SERVICE |
|||
|
Service interval |
|
5,000 Km |
5,000 Km |
Mombasa, Kenya
