MAKE

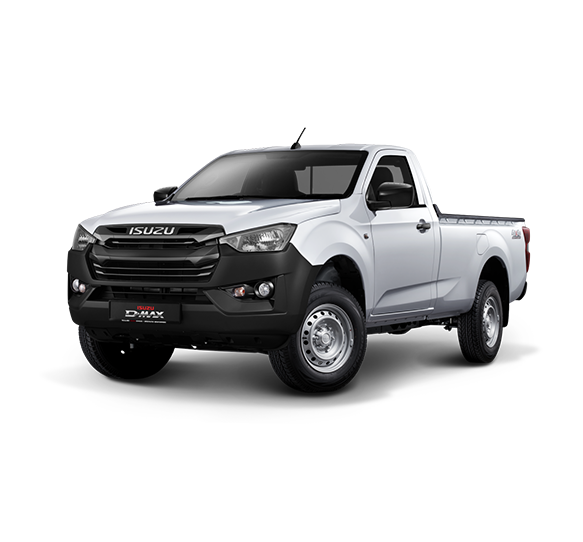

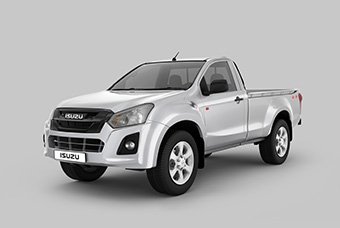

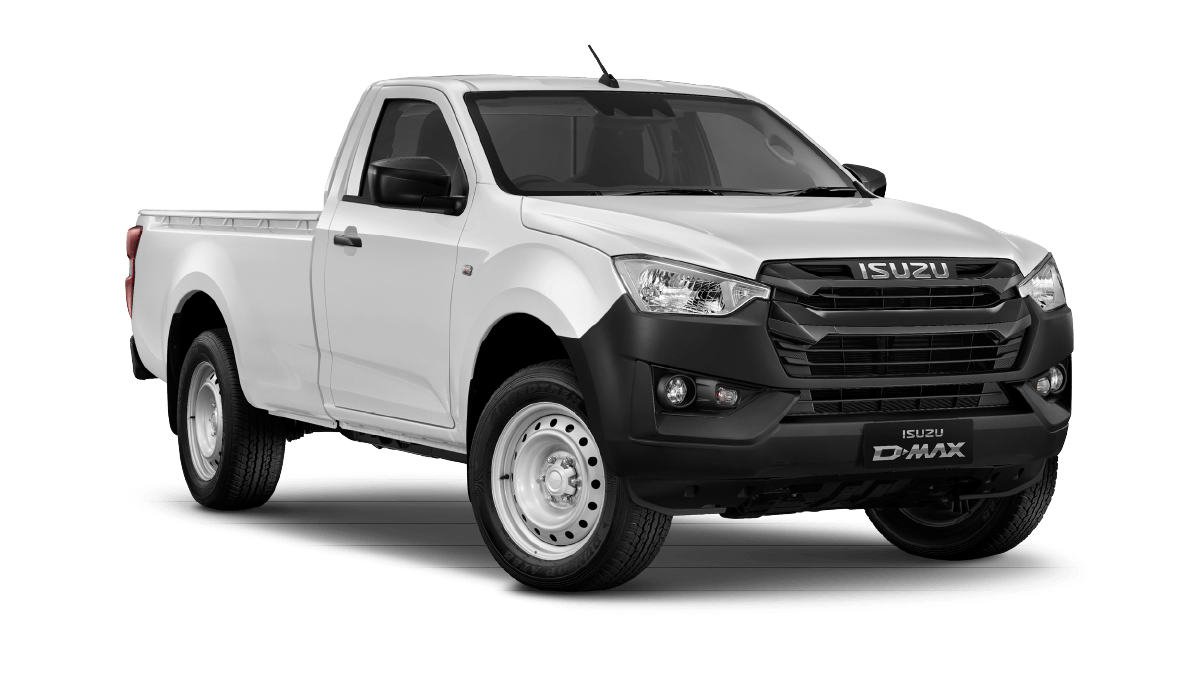

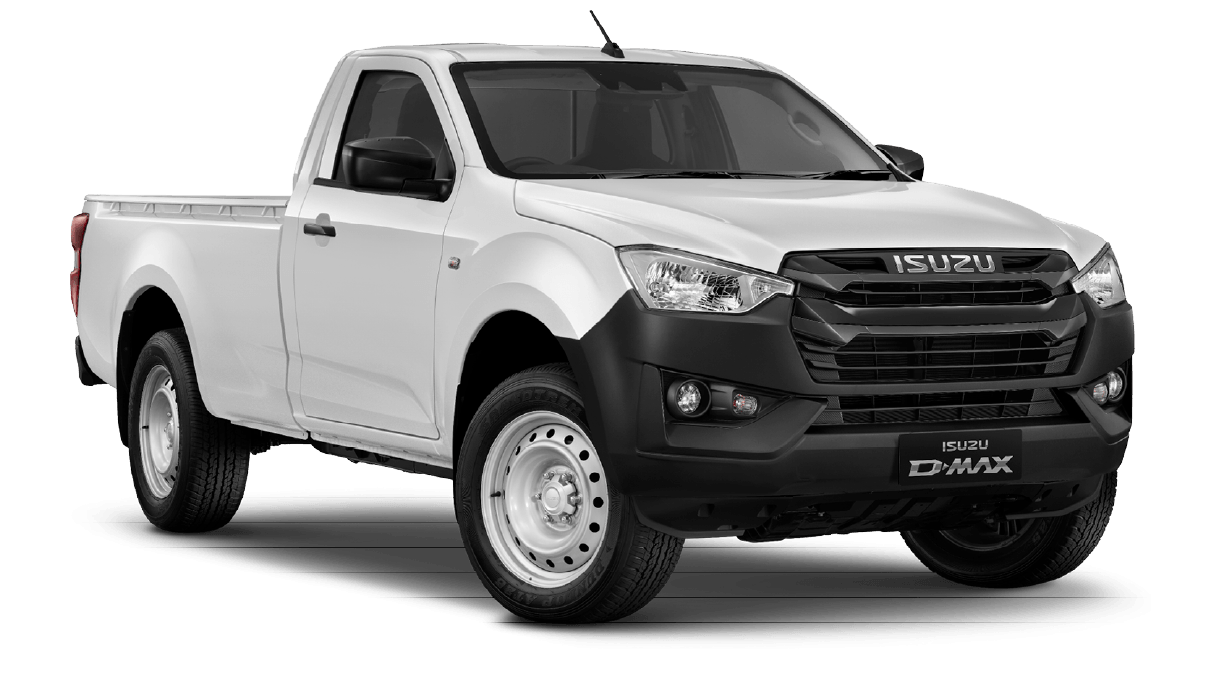

ISUZU DMAX

ISUZU DMAX

ISUZU DMAX

MODEL/ TRIM

TFR86 BASE HR (A/C)

TFR86 BASE HR (A/C, A/BAG)

TFS86 BASE(A/C, A/BAG)

DRIVE CONFIGURATION

4x2

4x2

4x4

ENGINE

Engine Code

4JK1-TC HO

4JK1-TC HO

4JK1-TC HO

Displacement (cc)

2499

2499

2499

No. of Cylinders

4

4

4

Compression Ratio

18.1:1

18.1:1

18.1:1

Bore x Stroke

95.4 x 87.4

95.4 x 87.4

95.4 x 87.4

No. of Valves

16

16

16

Power (kW) @ r/min

100 @ 3600

100 @ 3600

100 @ 3600

Torque (Nm) @ r/min

320 @ 1800-2800

320 @ 1800-2800

320 @ 1800-2800

Fuel System

Common Rail Direct Injection

Common Rail Direct Injection

Common Rail Direct Injection

Turbocharger

Std

Std

Std

Intercooler

Std

Std

Std

EMMISION STANDARD

Emmison Standard

Euro-4

Euro-4

Euro-4

FUEL

Fuel Type

Diesel

Diesel

Diesel

TRANSMISSION

Transmission Type

5-Speed Manual

5-Speed Manual

5-Speed Manual

4WD Rotary Switch Control - 2 Speed Transfer Case

-

-

Std

Low Range Ratio

-

-

2.482

FRONT DIFFERENTIAL

Shift On The Fly

-

-

Std

Axle Ratio Final Drive

-

-

4.1

REAR DIFFERENTIAL

Limited Slip Differentoal (LSD)

Std

Std

Std

Axle Ratio Final Drive

3.909

3.909

4.1

CHASSIS DESIGN

Wheel Suspension Front

Highride Coil Spring

Highride Coil Spring

Highride Coil Spring

Wheel Suspension Rear

Leaf Spring Overslung

Leaf Spring Overslung

Leaf Spring Overslung

Shock Absobers

Twin-tube Gas Pressurised (Heavy Duty)

Twin-tube Gas Pressurised (Heavy Duty)

Twin-tube Gas Pressurised (Heavy Duty)

Hi-ride Suspension

Std

Std

Std

Skid Plate Guard

Std

Std

Std

Engine Sump Guard

Std

Std

Std

Transfer Case Guard

-

-

Std

Fuel Tank Guard

Std

Std

Std

WHEEL / TYRES

Tyre Size

205R16C (AT)

205R16C (AT)

245/70 R16 (AT)

Wheel Size / Type

6.5J-33x16”Steel

6.5J-33x16”Steel

7.0J-33x16” Alloy

Spare Wheel Size / Type

6.5J-33x16”Steel

6.5J-33x16”Steel

7.0J-33x16” Steel

Turnng Circle, Curb to Curb (m)

12.8

12.8

12.8

DIMENSIONS

Length (mm)

5218

5218

5218

Width (mm)

1860

1860

1860

Width inc. Mirrors (mm)

2132

2132

2132

Height (mm)

1790

1790

1790

Wheelbase (mm)

3095

3095

3095

Track Front / Rear

1570 / 1570

1570 / 1570

1570 / 1570

Ground Clearance (mm)

225

225

224

Loadbox Length (mm)

2318

2318

2318

Loadbox Width (mm)

1534

1534

1534

Loadbox Depth (mm)

440

440

440

Approach Angle (o)

30

30

30

Departure Angle (o)

22.4

22.4

22.4

Breakover Angle (o)

22.4

22.4

22.4

Wading Depth (mm)

600

600

600

MASS / CAPACITY

Gross Vehicle Mass (GVM) (kg)

2850

2850

2950

Gross Combined Mass (GCM) (kg)

4450

4450

4950

Tare Mass (kg)

1705

1710

1820

Payload (kg)

1086

1086

1071

Towing Capacity Unbraked Trailer (kg)

750

750

750
