MODEL

LE

ENGINE INFORMATION

Number of cylinders, configuration

8, in line

Valves per cylinder

4, DOHC

Air intake system

Natural Aspiration

Engine capacity

cc

5 600

Bore x Stroke

mm

98 x 92

Compression ratio

10,8

Combustion principle

Spark ignition

Fuel type

Petrol

Fuel capacity

l

140

Fuel supply

Direct fuel injection

TRANSMISSION

Transmission type

7-speed A/T

Gear ratio

1st

4 887

Gear ratio

2nd

3 170

Gear ratio

3rd

2 027

Gear ratio

4th

1 412

Gear ratio

5th

1 000

Gear ratio

6th

0.864

Gear ratio

7th

0.775

Gear ratio

Rev

4 041

Transfer gear ratio

2 679

Final gear ratio

3 357

ENGINE PERFORMANCE

Engine type

DOHC V8

Fuel tank capacity

ℓ

140

Max horsepower

kW (hp)

298 (400) @ 5800rpm

Max torque

Nm (kg-m)

560 (53.7) @ 4000rpm

Max speed

km/h

200

Dimensions and capabilities

Overall length

mm

5 140

Overall height

mm

1 940

Overall width

mm

1 995

Wheel base

mm

3 075

Interior height: 1st/2nd/3rd

mm

1 267/1 253/1 110

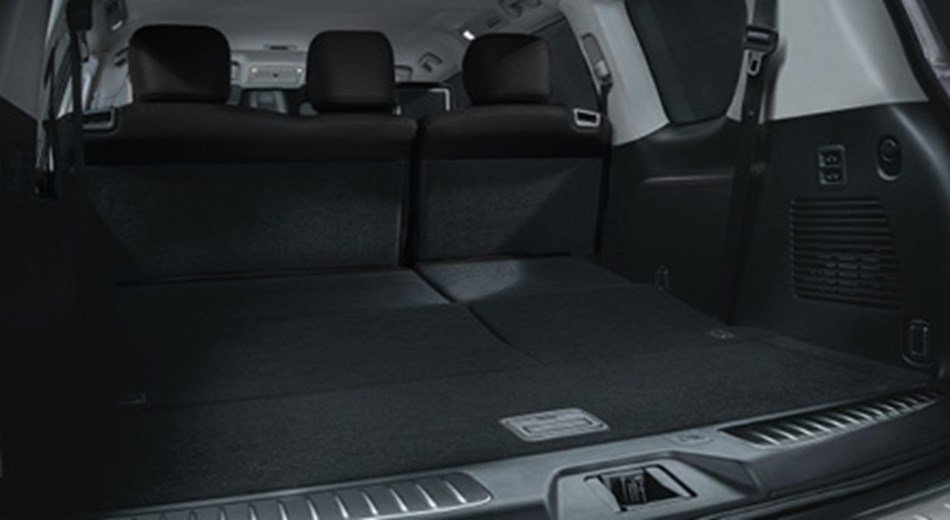

Luggage capacity (VDA) behind 3rd row

ℓ

550

Luggage capacity (VDA) behind 2nd row

ℓ

1 490

Luggage capacity (VDA) behind 1st row

ℓ

3 170

Front overhang

mm

925

Rear overhang

mm

1 140

Turning circle

m

12.5

Ground clearance

mm

283

Departure angle

Deg

26

Approach angle

Deg

35

Ramp breakover angle

Deg

24

Maximum wading depth

mm

700

Limited Slip Differential

Standard

WEIGHTS

Kerb weight

kg

2 830

Gross Vehicle Mass

kg

3 450

Maximum trailer weight braked (towing capacity)

kg

3 500

Maximum trailer weight unbraked (towing capacity)

kg

750

Permissible vertical force on hitch ball

kg

140

Maximum roof load with roof rails

kg

100

SUSPENSION

7-speed A/T with Manual mode & synchronized rev. control

Standard

Front and rear suspension with Hydraulic Body Motion Control

Standard

Front and rear double wishbone suspension

Standard

Rear differential lock

Standard

COMFORT AND CONVENIENCE

Heated rear screen with defogger, timer and intermittent wipers

Standard

Electric adjustable rear view mirror

Standard

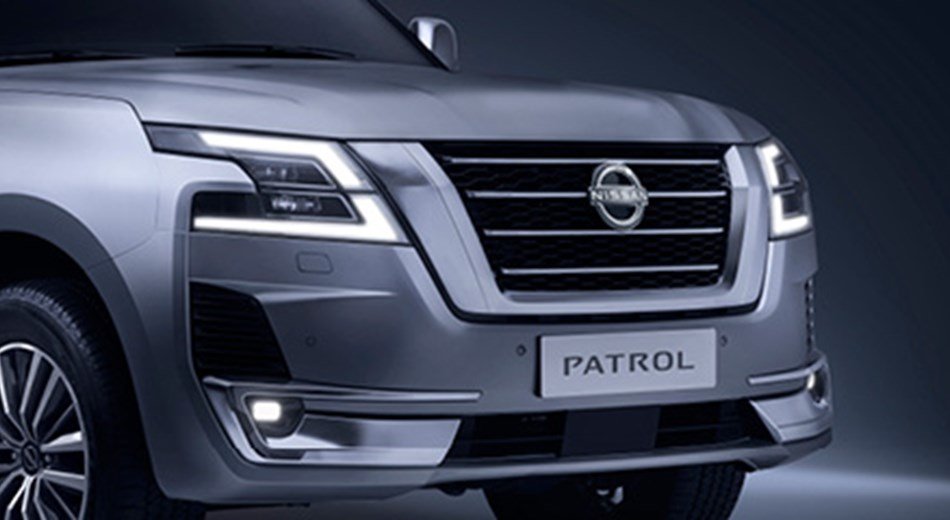

Automatic adjustable xenon headlights with headlight washers

Standard

Front and rear fog lights

Standard

Turn signal light with side repeaters on door mirrors

Standard

Electric outside folding mirror with manual anti-dazzle

Standard

Interior rear view mirror with electric anti-dazzle

Standard

Exterior rear view mirror with light, heater and defroster

Standard

Tinted windscreen variable intermittent wipers with mist and speed sensor

Standard

Programmable exterior rear view mirrors with position memory synchronisation

Standard

Door windows with UV and noise insulation

Standard

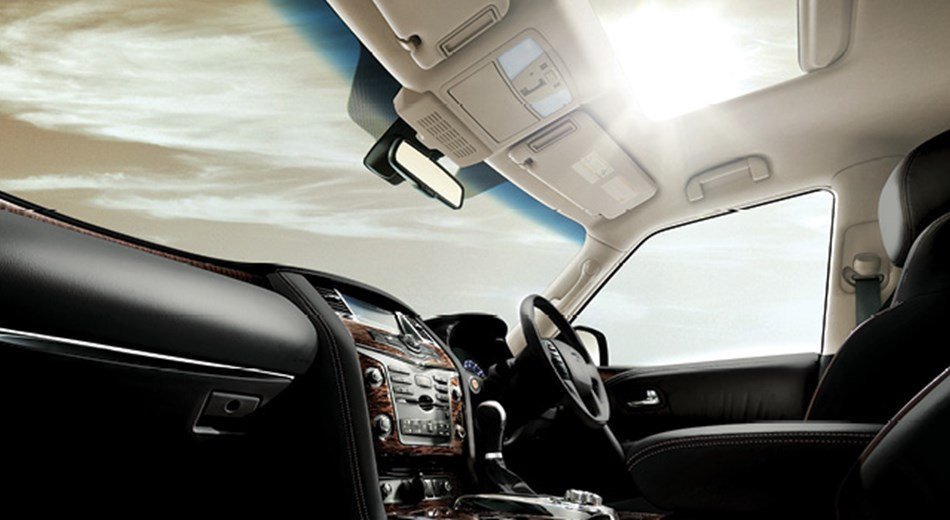

Front tilt and rear slide sunroof

Standard

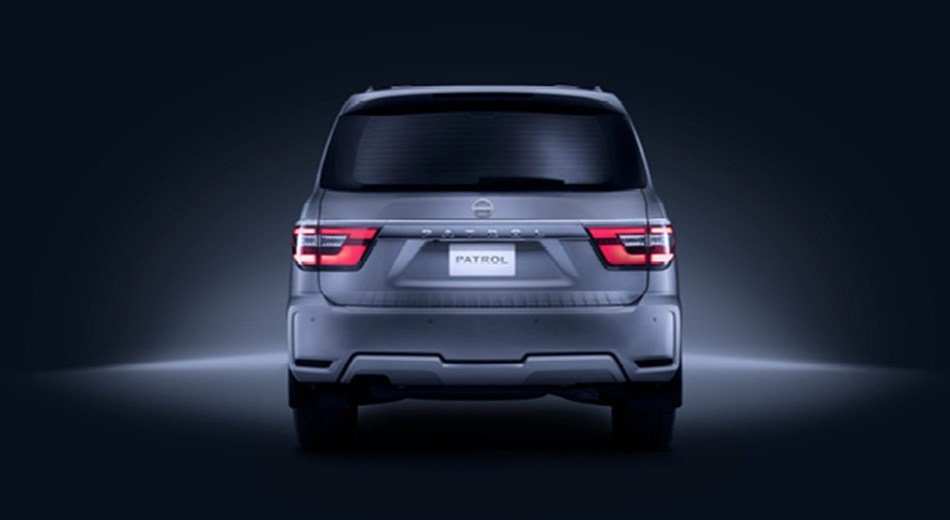

Rear LED lights

Standard

Exterior mirror light with puddle light

Standard

Rear privacy windows

Standard

Power steering

Twin orifice

Electric door locking with crash sensitive door unlock function

Standard

Drive computer

Standard

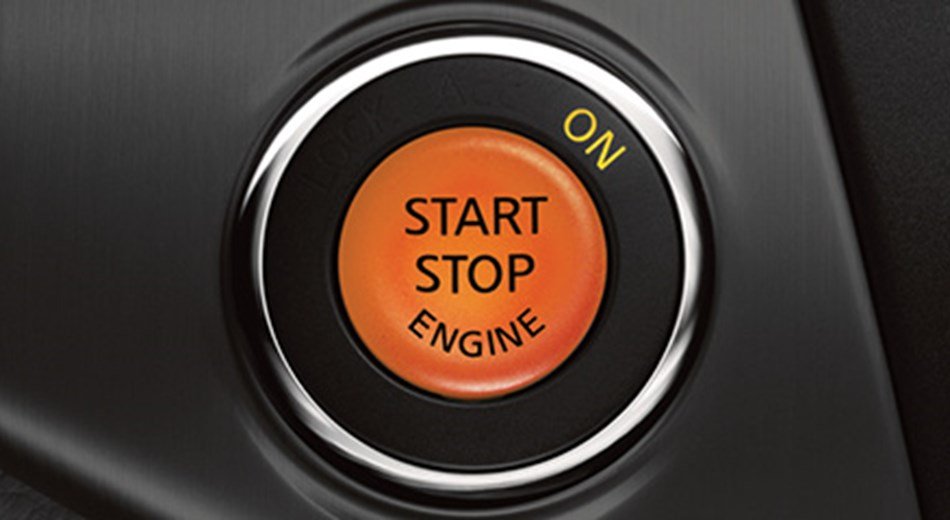

Intelligent key entry and engine stop/start

Standard

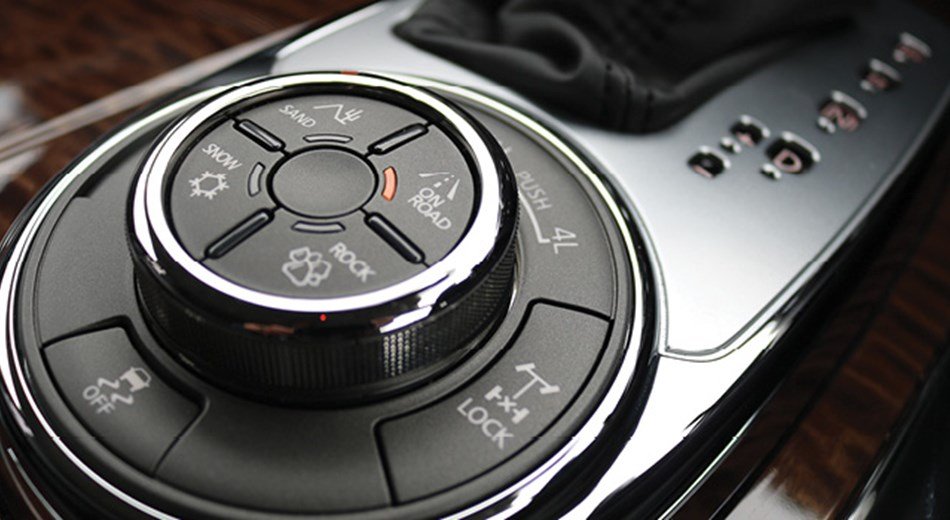

All MODE 4x4

Standard

Front and rear electric, timer, anti-pinch window

Standard

MODEL

LE

COMFORT AND CONVENIENCE (CONTINUED)

Steering wheel height , tilt adjust and telescopic

Standard

Driver and Passenger sunvisor with vanity mirror, light and extension

Standard

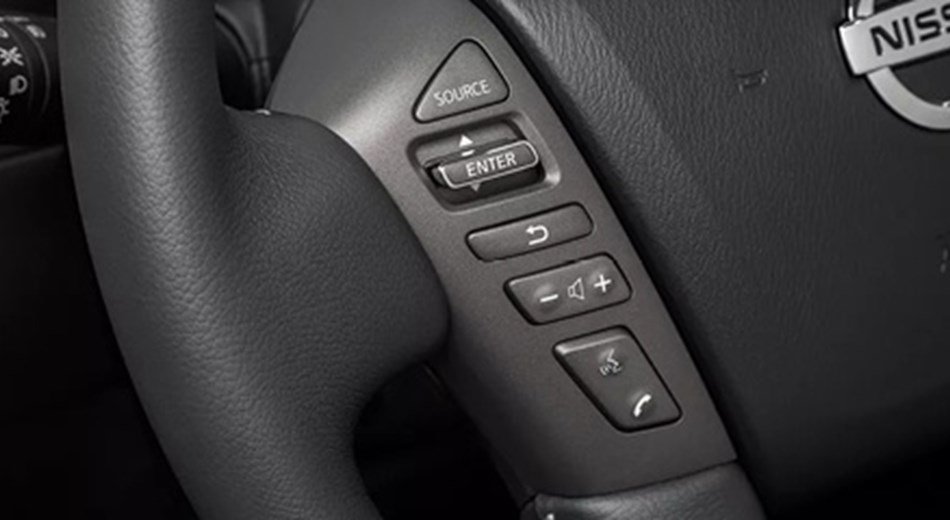

Cruise control with Audio Steering Control Device

Standard

Audio switch capability

Standard

Auto compass integrated in mirror

Standard

Roof console, sunglass holder and microphone

Standard

Front and rear door storage

Standard

Rear seats personal lighting

Standard

Glove cool box with light, lock and damper

Standard

Centre console with storage and cool box

Standard

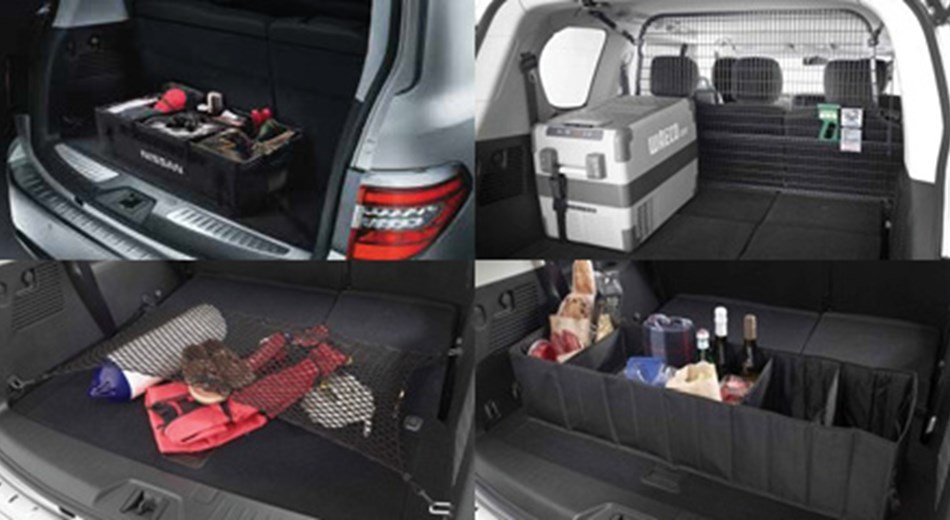

Luggage room with 8 hooks, light and secret storage

Standard

Front seat foot well lamp

Standard

12V x 3 Sockets: Front and rear side of front console and luggage side

Standard

7 cup holders and 8 bottle holders

Standard

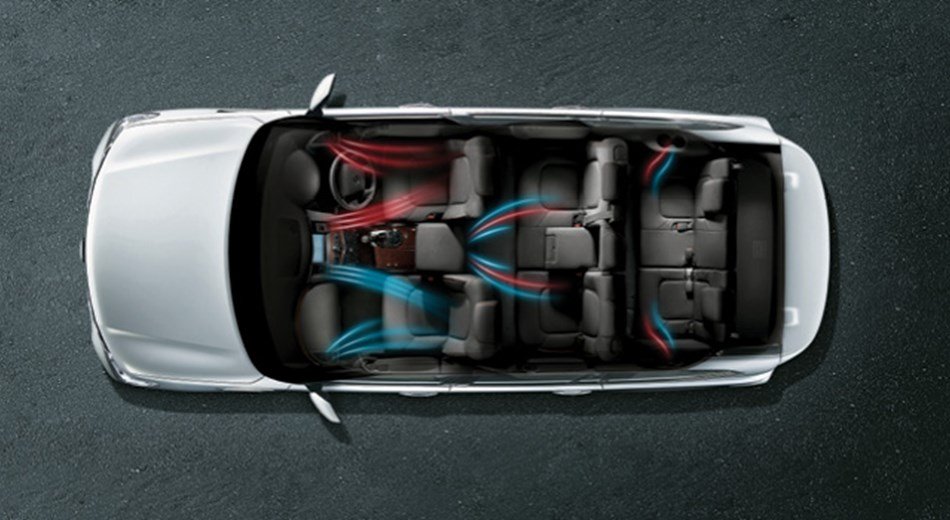

Air conditioning and heater, front: Mild flow full auto dual zone air conditioning. Rear:

indi- rect full auto air conditioning

Standard

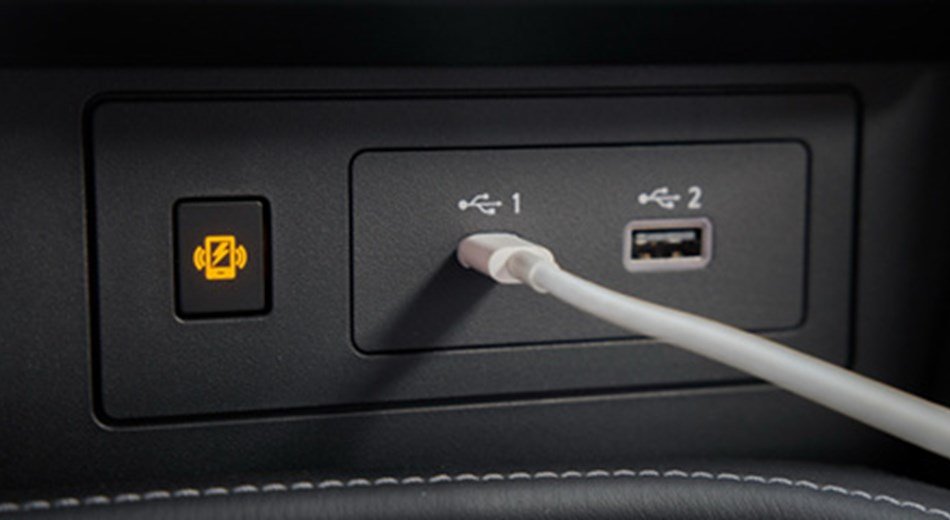

iPod, USB and Bluetooth connectivity

Standard

Navigation monitor front: LCD 7" QVGA colour display / rear: LCD 7" colour display with

Infrared, Bluetooth & VTR JACK & Rear entertainment system - IT Gen5 Audio Platform

Standard

Radio: AM/FM & FM SUB, FM diversity, 1 DVD, MP3 and 13 premium BOSE speakers

Standard

Front headrest

Active headrest with 7inch WVGA Display optional

Rear headrest

Standard

Front seat with climate control

Standard

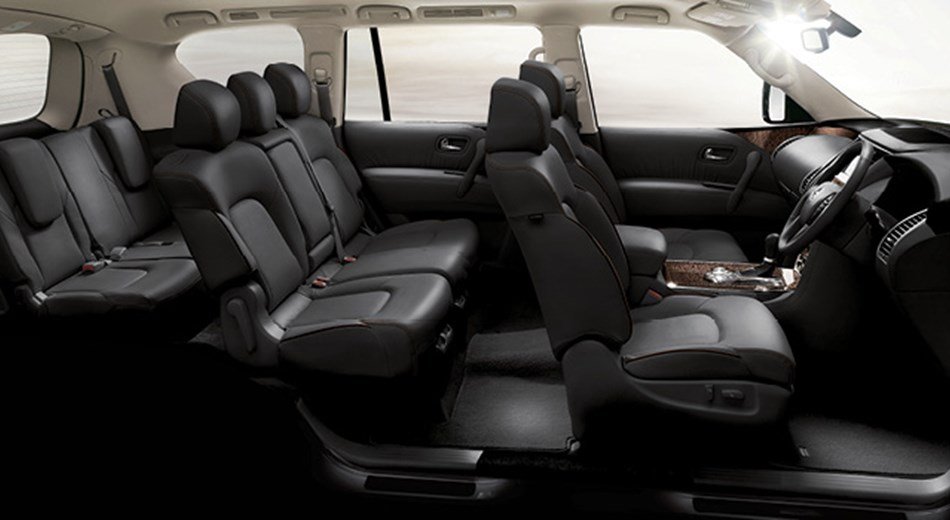

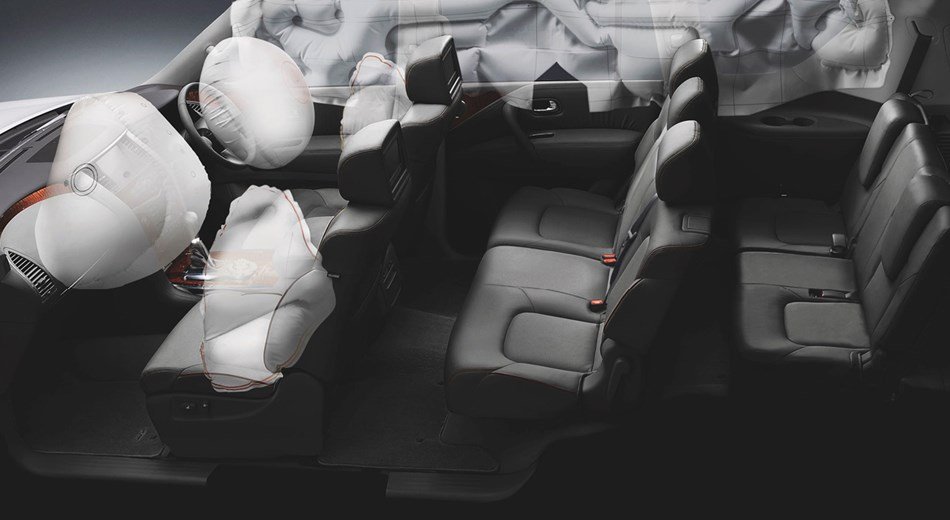

2nd row seats with manual reclining, rear centre armrest with storage and manual fold

Standard

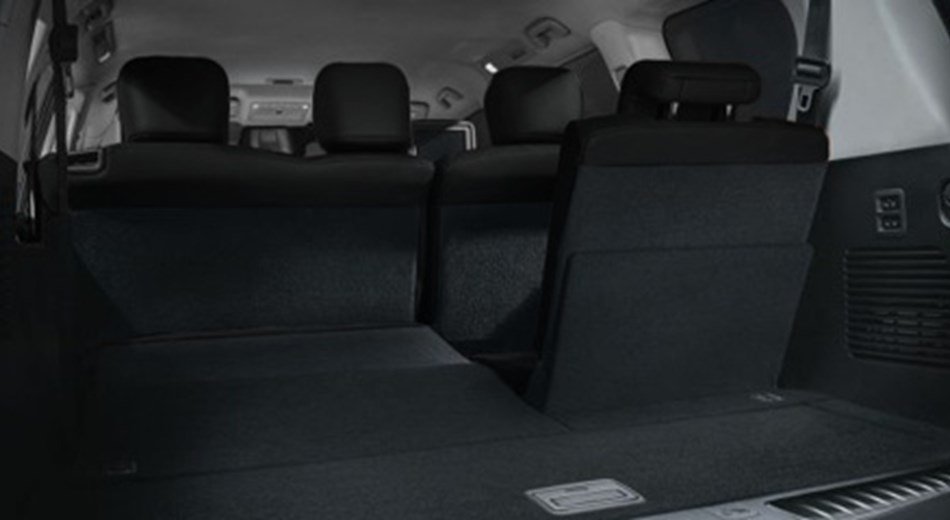

3rd row seats 60:40 split manual lever fold down and reclining

Standard

Driver seat slide and recline adjustment with lifter, lumbar, memory function and climate control

Electric adjust

Passenger seat with slide and recline adjust and memory function

Electric adjust

Driver and passenger seat back pocket

Standard

Seat material

Leather

Rear 2nd seat manual reclining

Standard

3rd Row seat headrest

Standard

Roof rails

Standard

Boot door with auto closer

Standard

Boot door with auto closer and power back

Standard

Rear towing hook: 3

Standard

WHEEL & TYRE

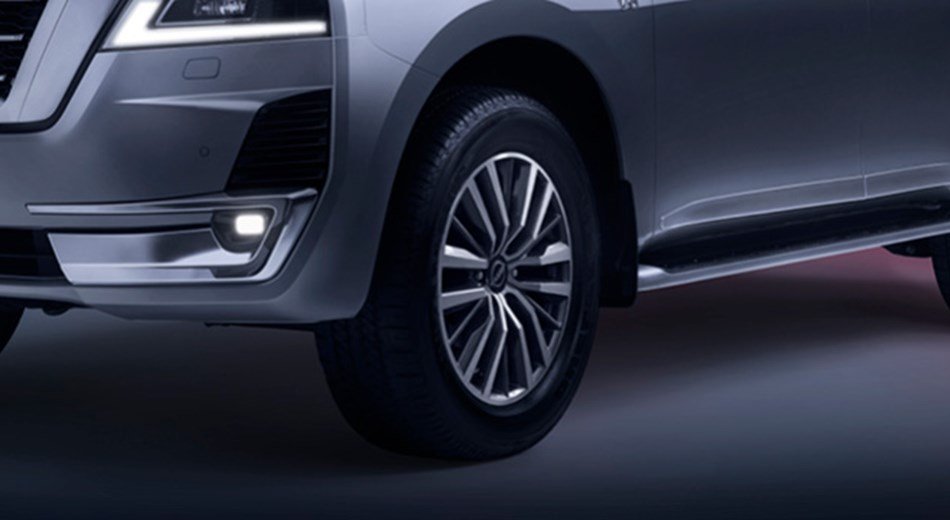

All season alloy tyre size 265/70R 18

Standard

Wheel embellishers centre cap

Standard

Spare wheel full size

Standard
