Exterior Accessories

Model Grade Application

EXTERIOR STYLING

VISIA

ACENTA

TEKNA

Body side moldings (unpainted)

KE7604C52P

X

X

X

Body side moulding set - colour Red Solid (AX6)

F38704CE0A

X

X

X

Body side moulding set - colour Military Green (EAN)

F38704CE0B

X

X

X

Body side moulding set - colour Black Pearl (G41)

F38704CE0D

X

X

X

Body side moulding set - colour Gun Metallic (KAD)

F38704CE1A

X

X

X

Body side moulding set - colour New Silver (K23)

F38704CE0E

X

X

X

Body side moulding set - colour Brilliant White (QAB)

F38704CE1B

X

X

X

Body side moulding set - colour Greyish Blue (RAQ)

F38704CE1C

X

X

X

Rear bumper upper protector JPN (carbon effect)

H59104CE0A

X

X

X

Front over rider + front styling plate EU (package)

KE5406F04A

X

X

X

Side styling plate EU

KE7606F06A

X

X

X

Rear styling plate EU (Adapted for vehicles with towbar and w/o parking sensor)

KE5476F04C

X

X

X

Nudge bar AUS (black - integrated assembly)

F20646FL0AAU

X

X

X

Nudge bar MAXE (stainless steel)

tbe

X

X

X

Side steps MAXE (stainless steel)

tbe

X

X

X

Rear bumper styling bars MAXE (stainless steel)

tbe

X

X

X

INTERIOR UTILITY

VISIA

ACENTA

TEKNA

Trunk entry guards (aluminium)

KE9674C520

X

X

X

Dog guard / Trunk separator

KE9643B53A

X

X

X

EXTERIOR UTILITY

VISIA

ACENTA

TEKNA

Thule cross bars for vehicle with OE roof railings

775869

X

X

X

Thule cross bars for vehicle without OE roof railings

N3133753960

X

X

X

Bosal tow bar - LED illumination

tbc

X

X

X

PROTECTION

VISIA

ACENTA

TEKNA

Headlight covers (clear)

EGR156550E

X

X

X

Bonnet guard (smoke)

EGR148540EDS

X

X

X

Window visors (smoke)

EGR150090E

X

X

X

SAFETY & SECURITY

VISIA

ACENTA

TEKNA

Wheel locks with two adaptor keys

LNG12A42

X

X

X

Window film

SECFITXTR14

X

X

X

Interior Accessories

Model Grade Application

PROTECTION

VISIA

ACENTA

TEKNA

Seat covers Grey

TAKXTSCG

X

X

X

Seat covers Carbon Black

TAKXTSCB

X

X

X

Carpet set 5pc for 5 seater

777T32MY14L

X

X

X

Carpet set 5pc for 7 seater

777T32MY14L7

X

X

X

Rubber mat - Front & 2nd rear set - RHD

KE7584B089

X

X

X

Model

2.0 Visia CVT

2.0 Acenta CVT

2.0 Tekna CVT 4WD

ENGINE

Engine code

MR20

MR20

MR20

No. of cylinders, configuration

4, in line

4, in line

4, in line

Valves per cylinder

4

4

4

Air intake system

Normal aspiration

Normal aspiration

Normal aspiration

Engine displacement (cm³)

cm³

1997

1997

1997

Bore x stroke (mm)

mm

Ø84 x 90.1

Ø84 x 90.1

Ø84 x 90.1

Max. engine power kW @ rpm

kW

106@6000

106@6000

106@6000

Maximum torque Nm @ rpm

Nm

200Nm@4400

200Nm@4400

200Nm@4400

Compression ratio

11,2

11,2

11,2

Cam type

DOHC led by chain

DOHC led by chain

DOHC led by chain

Fuel type

Unleaded Petrol (RON91)

Unleaded Petrol (RON91)

Unleaded Petrol (RON91)

Ignition system / Intake system

individual coils / knock control

individual coils / knock control

individual coils / knock control

Fuel Supply

Direct injection

Direct injection

Direct injection

Emissions Level

EURO4

EURO4

EURO4

DRIVE TRAIN

Transmission

CVT

CVT

CVT

Gear ratio

1st

2.349 ~ 0.394

2.349 ~ 0.394

2.349 ~ 0.394

2nd

3rd

4th

5th

6th

Reverse

Final drive ratio

PERFORMANCE

Fuel consumption

Urban cycle

ℓ/100km

9,2

9,2

9,4

Extra-urban

ℓ/100km

6,2

6,2

6,4

Combined

ℓ/100km

7,3

7,3

7,5

CO2 mass emission Combined

g/km

169

169

174

Acceleration 0 - 100 km/h

sec

11,7

11,7

12,1

Max. speed (km/h)

183

183

180

CHASSIS

Suspension Front

Independent Strut type + Stabilizer

Independent Strut type + Stabilizer

Independent Strut type + Stabilizer

Suspension Rear

Independent Multi link type + Stabilizer

Independent Multi link type + Stabilizer

Independent Multi link type + Stabilizer

Steering

Power Steering (EPS -Electric Power Assisted)

Power Steering (EPS -Electric Power Assisted)

Power Steering (EPS -Electric Power Assisted)

Model

2.0 Visia CVT

2.0 Acenta CVT

2.0 Tekna CVT 4WD

CHASSIS (CONTINUED)

Independent Strut type suspension

Standard

Standard

Standard

Independent mulitlink rear suspension

Standard

Standard

Standard

Front stabiliser

Standard

Standard

Standard

Rear stabiliser

Standard

Standard

Standard

Front and rear disc brake

Standard

Standard

Standard

Brake Limited Slip Differential

Standard

Standard

Standard

Steering turns - lock to lock

2,97

2,97

2,97

Min. turning circle (kerb to kerb all tyres/wheels size)

m

11,2

11,2

11,2

Braking system

Ventilated front/rear discs, diagonal circuit, power assisted

Ventilated front/rear discs, diagonal circuit, power assisted

Ventilated front/rear discs, diagonal circuit, power assisted

ABS, EBD and VDC

ABS, EBD and VDC

ABS, EBD and VDC

Front brakes diameter and thickness

320x28

320x28

320x28

Rear brakes diameter and thickness

292x16

292x16

292x16

WEIGHTS & DIMENSIONS

Kerb weight

Kg

1552

1552

1627

Gross vehicle mass

Kg

2120

2120

2190

Max. payload

Kg

568

568

563

Overall length

mm

4640

4640

4640

Overall width

mm

1820

1820

1820

Overall height

mm

1710

1710

1710

Wheelbase

mm

2705

2705

2705

Track front

mm

1575

1575

1575

Track rear

mm

1575

1575

1575

Rear overhang

mm

940

940

940

Front overhang

mm

995

995

995

Minimum ground clearance

mm

209

209

209

Approach angle

˚

18,5

18,5

18,5

Departure angle

˚

24,7

24,7

24,7

Ramp over angle

˚

19,8

19,8

19,8

Luggage space - max. width

mm

1305

1305

1305

Luggage capacity (VDA)

ℓ

135

135

135

Luggage capacity with folded seats

ℓ

1310

1310

1310

Frontal area

m²

2,59

2,59

2,59

Fuel tank capacity

ℓ

60

60

60

EXTERIOR

Tinted windscreen with top shade

Standard

Standard

Standard

Rear windows Privacy glass

Standard

Standard

Standard

Model

2.0 Visia CVT

2.0 Acenta CVT

2.0 Tekna CVT 4WD

EXTERIOR (CONTINUED)

Heated rear screen with timer

Standard

Standard

Standard

Body Colour mirrors

Standard

Standard

-

Electric foldable mirrors

Standard

Standard

Standard

Electric adjustable mirrors

Standard

Standard

Standard

Exterior rearview mirror with defrosting functionality

-

-

Standard

Interior rearview mirror with manual anti-dazzle

Standard

Standard

Standard

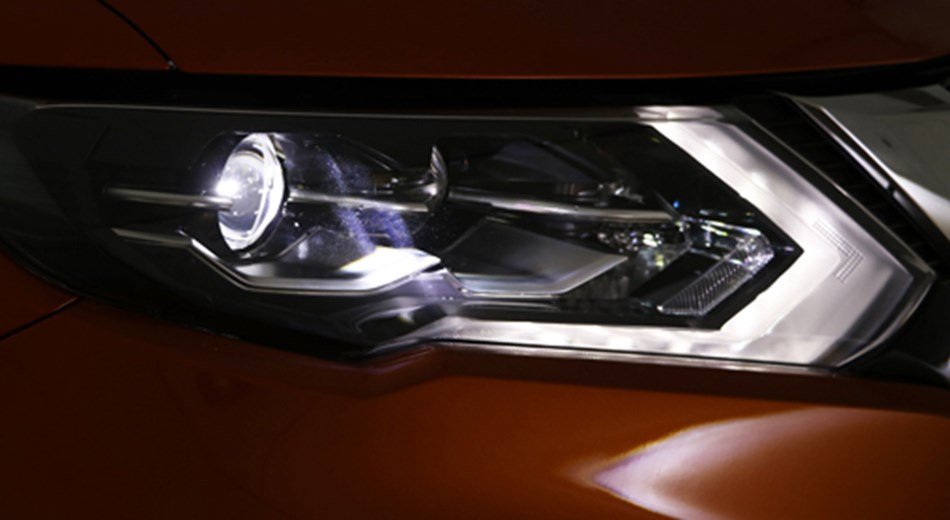

Halogen headlights with daytime running light

Standard

-

-

LED headlights with daytime running light

-

Standard

Standard

Headlights manual leveliser

Standard

-

-

Headlights auto leveliser

-

Standard

Standard

Welcome and follow-me-homelights

Standard

Standard

Standard

Front fog lights

-

Standard

Standard

Rear combination lamp

Standard

Standard

Standard

Side door turn signal lamp

Standard

Standard

Standard

Variable speed intermittent wipers with mist wipe, rain sensor, speed sensor and drip wipe

Standard

Standard

Standard

Intermittent rear screen wiper

Standard

Standard

Standard

Front bumper

Standard

Standard

Standard

Rear bumper

Standard

Standard

Standard

Roof spoiler

Standard

Standard

Standard

Roof rail

-

-

Standard

Front mud guards

Standard

Standard

Standard

Rear mud guards

Standard

Standard

Standard

Side sill cover

Standard

Standard

Standard

Chrome outside door handle

Standard

Standard

-

Chrome outside door handle with i-Key request switch

-

-

Standard

INTERIOR

Steering wheel material

Urethane

Leather

Leather

Electric Power Steering (EPS)

Standard

Standard

Standard

Steering wheel manual tilt and telescopic adjustment

Standard

Standard

Standard

Handsfree Bluetooth connectivity

Standard

Standard

Standard

Manual parking brake - foot release

Standard

Standard

Standard

Foot rest

Standard

Standard

Standard

Electric windows

Standard

Standard

Standard

Auto door lock

Standard

Standard

Standard

Central door lock

Standard

Standard

Standard

Intelligent key (Front door open/close and back door open/close with panic alarm)

-

Standard

Standard

Model

2.0 Visia CVT

2.0 Acenta CVT

2.0 Tekna CVT 4WD

INTERIOR (CONTINUED)

Push engine start

-

Standard

Standard

Cruise Control with Audio Steering Control Device

Standard

Standard

Standard

Driver sun visor with vanity mirror, illumination and card holder

Standard

Standard

Standard

Passenger sunvisor with vanity mirror and illumination

Standard

Standard

Standard

COMFORT AND CONVENIENCE

Cloth seats

Standard

Standard

-

Leather seats

-

-

Standard

Driver seat manual slide, recline and lift

Standard

Standard

-

Driver seat power slide, recline, lift and lumber support

-

-

Standard

Driver seat back pocket

Standard

Standard

Standard

Front passenger seat with manual slide and recline

Standard

Standard

-

Front passenger seat with electric slide and recline

-

-

Standard

Back pocket on front passenger seat

Standard

Standard

Standard

Rear seat (40:20:40 split) single fold, manual recline, seat cushion and (60:40 SPLIT) SLIDE FUNCTION

Standard

Standard

Standard

3rd row seat (50:50 split manual single folding)

Standard

Standard

Standard

Rear centre armrest with cup holder

Standard

Standard

Standard

Walk-in function: Manual (Both side of 2nd row)

Standard

Standard

Standard

Front door pocket with bottle holder

Standard

Standard

Standard

Rear door pocket with bottle holder

Standard

Standard

Standard

Front centre console with storage, drink holder (cool/warm functionality) and armrest + RR storage

Standard

Standard

-

Front centre console with drink holder (cool/warm functionality) and armrest

-

-

Standard

Roof storage with sunglass holder, map lamp, mood lamp

Standard

Standard

Standard

Luggage room rear partition

Standard

Standard

Standard

Glove box with illumination

Standard

Standard

Standard

Assist grip *3

Standard

Standard

Standard

Coat hanger *1 rear seat

Standard

Standard

Standard

Room lamp, map and mood light

Standard

Standard

-

Room lamp, map, mood light and rear personal light

-

-

Standard

Luggage illumination

Standard

Standard

Standard

Luggage hook: 4 pieces

Standard

Standard

Standard

Luggage box understorage with tonneau cover

Standard

Standard

Standard

Cupholder: 4

Standard

Standard

Standard

Bottle holder: 6

Standard

Standard

Standard

Front ashtray

Standard

Standard

Standard

Front cigarette lighter

Standard

Standard

Standard

Power socket 12V*2

Standard

Standard

Standard

Model

2.0 Visia CVT

2.0 Acenta CVT

2.0 Tekna CVT 4WD

COMFORT AND CONVENIENCE (CONTINUED)

Manual air conditioner - dial type

Standard

-

-

Full Auto AC+Dual zone climate control

-

Standard

Standard

Rear seat air conditioner vent with shut vent

Standard

Standard

Standard

Rear heater duct

Standard

Standard

Standard

Front ventilator in instrument panel

Standard

Standard

Standard

Electric sunroof: tilt and slide (one-touch open/close)

-

Standard

Standard

Rear tailgate manual

Standard

-

-

Rear tailgate power up with no-touch sensor

-

Standard

Standard

Around view monitor+Moving Object Detection (MOD)

-

-

Standard

AUDIO, COMMUNICATION AND INFORMATION

Radio (AM/FM/RDBS , 1CD , USB/IPOD/AUX/BT AUDIO , Handsfree)

Standard

Standard

-

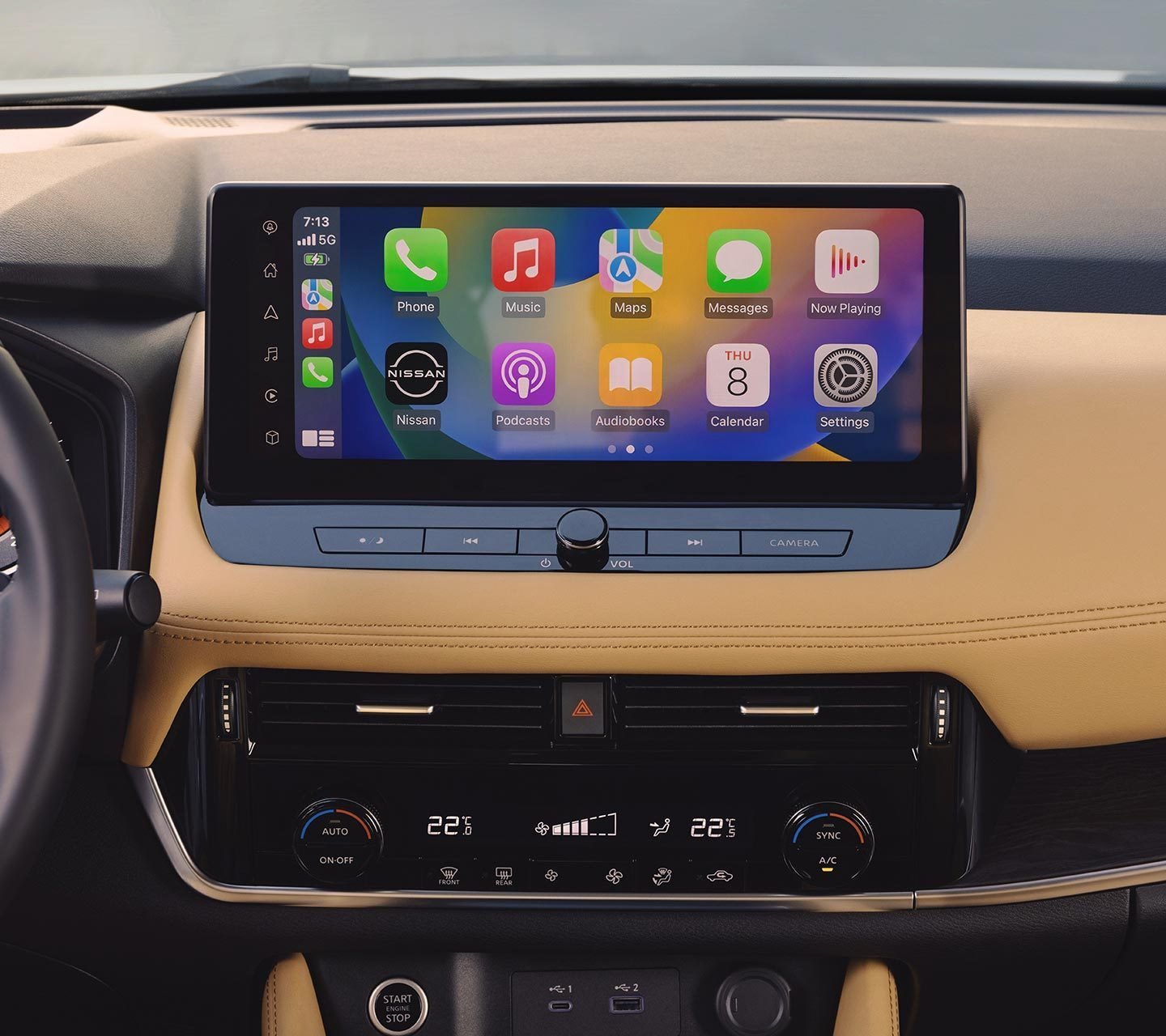

Display audio LCD 5.0" Colour VGA

-

-

Standard

4 Speakers

Standard

-

-

6 Speakers

-

Standard

Standard

Bluetooth Handsfree connectivity

Standard

Standard

Standard

Auxiliary jack and USB, iPod connectivity

Standard

Standard

Standard

SAFETY

Passenger airbag

Standard

Standard

Standard

Driver airbag

Standard

Standard

Standard

Side and curtain airbags

Standard

Standard

Standard

Driver 3 Point ELR, double pre-tensioner and load limiter

Standard

Standard

Standard

Rear seat: 3 point ELR (RH, LH and centre)

Standard

Standard

Standard

3rd row seatbelt: 3POINT ELR (RH and LH)

Standard

Standard

Standard

Driver seatbelt adjust functionality

Standard

Standard

Standard

Passenger seatbelt adjust functionality

Standard

Standard

Standard

2nd row seat ISOFIX and Tether anchor

Standard

Standard

Standard

Immobiliser, alarm and hood lock switch

Standard

Standard

Standard

Anti-lock Braking System (ABS) and Electronic Brake force Distribution (EBD)

Standard

Standard

Standard

Brake Assist (BA)

Standard

Standard

Standard

Model

2.0 Visia CVT

2.0 Acenta CVT

2.0 Tekna CVT 4WD

SAFETY (CONTINUED)

Vehicle Dynamic Control (VDC), Hill Descent Control (HDC), Hill Start Assist (HSA)

-

-

Standard

Vehicle Dynamic Control (VDC), Hill Start Assist (HSA)

Standard

Standard

-

Raised rear brake light

Standard

Standard

Standard

Driver seatbelt reminder

Standard

Standard

Standard

WHEELS AND TYRES

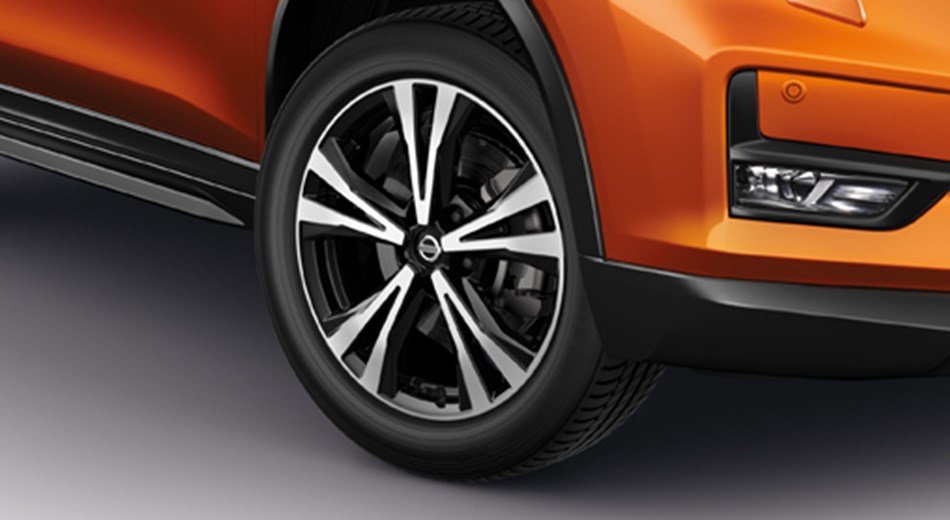

Alloy Wheel

Standard

Standard

Standard

Tyre Size

225/65 R17

225/65 R17

225/60 R18

Spare Tyre (Steel)

Standard

Standard

Standard

Spare Tyre Size

T155/90D17

T155/90D17

T155/90D17
