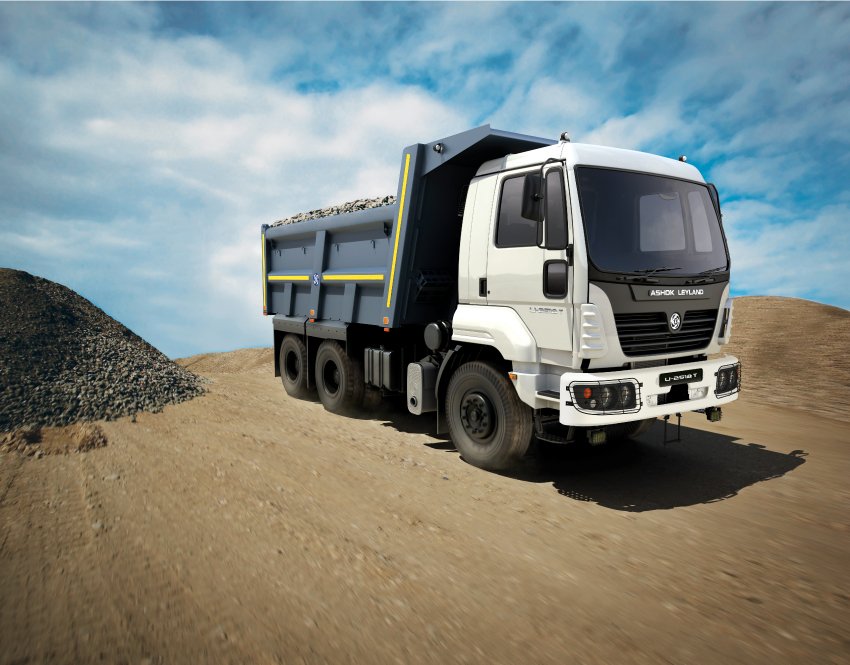

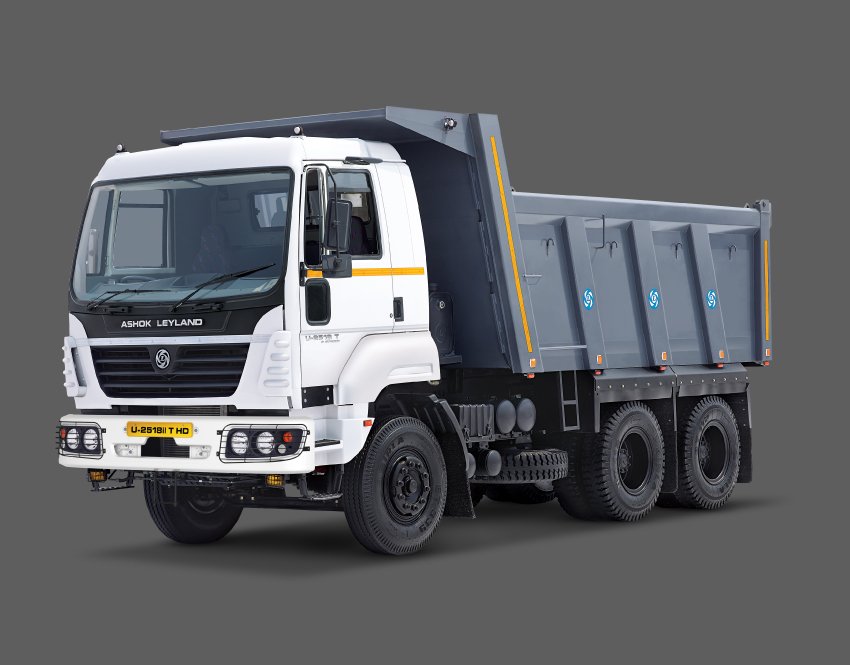

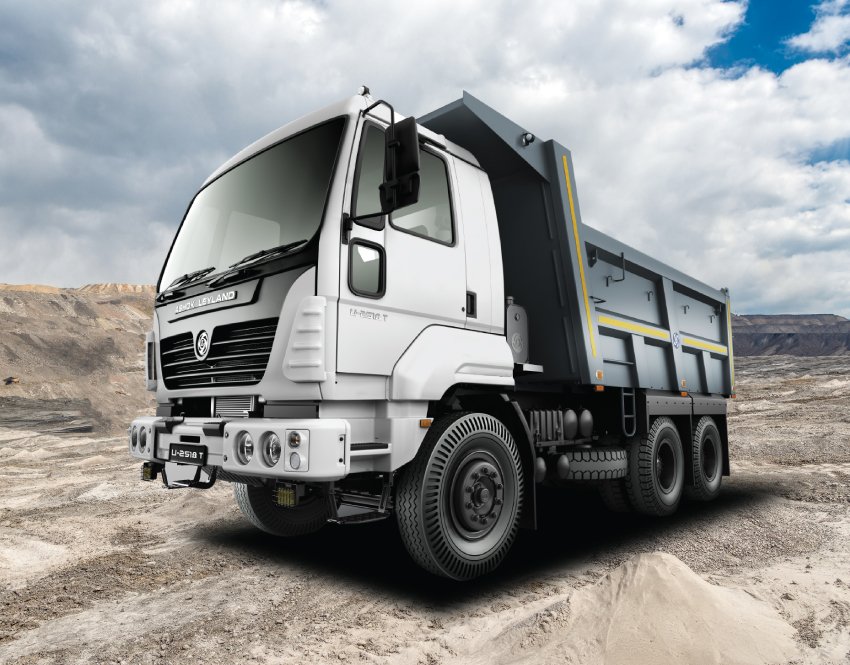

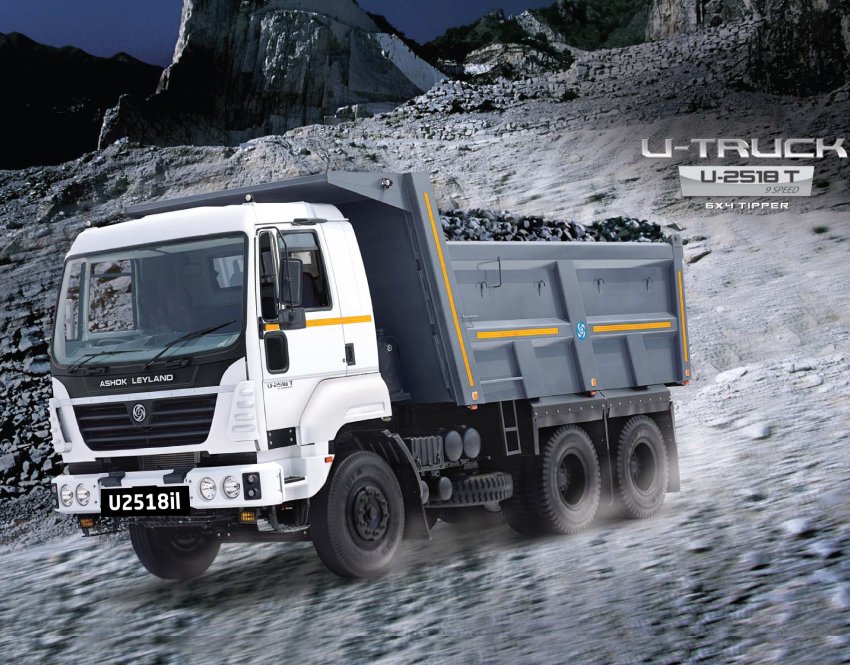

U 2518-T Tipper
- Home
- /
- Car Details
| Body | Sheet Thickness | Applications |
| (Floor x Side Board x Head Board) mm | ||
| 12 cum box | 6 x 5 x 5 | Ores and Mineral Transport (Bauxite, limestone) |
|
12 cum Scrow (Rock Body) |
8,4 x 5 x 5 | Marble, Stone Quarry For overbudden removal in irrigation and canal projects |
Engine: ‘H’ Series EURO III
Maximum power: 180 HP @2400 rpm
Maximum torque: 660NM @ 1500- 1700 rpm
Clutch: 15″ dia RDC with ceramic clutch disc
Transmission: 9-speed with 8.83:1 and crawler gear ration 12:73:1
Front axle: Forged I section reverse Elliot
Rear axle: Fully-floating single-speed hypoid with 6.83:1 RAR
Frame: 279 X 90 X 8 ladder type joggled bolted frame with 6 cross members
Suspension: Front: Semi-elliptic, multi-leaf. Rear: Bogie
Brakes: Full-air, dual-line brakes
Parking brakes: Flick-valve operated pneumatic hand brake on rear wheels only
Fuel tank capacity: 200 L cross-linked polymer tank
Battery: (12 V 130 AH) x 2
Tyres: 1000 x 20 – 16PR
Major Dimensions (mm)
Wheel base: 3900
Overall length: 6870
Overall width: 2500
Front overhang: 1520
Rear overhang: 1450
Front track: 2054
Rear track: 1870
Min ground clearance: 260
Min turning-circle dia: 15200
Performance Data
Max. speed in top gear: 67 kmph*
Max. Gradeability: 42%
Weight (Kgs)
| 12 Unladen | Laden | |
| 1 Cum box | ||
| Front axle | 4800 | 6000 |
| Rear axle | 6445 | 19000 |
| Total | 11245 | 25000 |
