Symmetrical AWD (All-Wheel Drive), Lineartronic
- Overall length (mm)4,640
- Overall width (mm)1,815
- Overall height (mm)1,730
- Wheelbase (mm)2,670
- Track : Front (mm)1,565
- Track : Rear (mm)1,570
- Minimum road clearance (at kerb weight) (mm)220

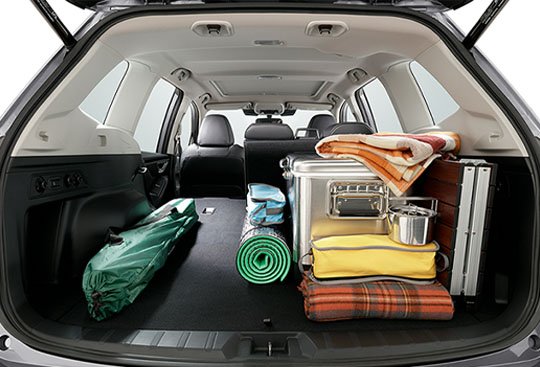

- Cargo volume*1 (lit.)1,775 / 1,747*2
- Seating capacity (persons)5
*1 Measured by VDA (V214).

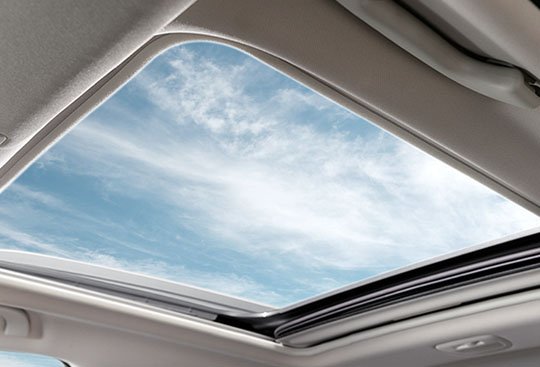

*2 Measurement with Sunroof.
Vehicle kerb weight varies according to the types of optional equipment included.
FORESTER 2.0i-S EyeSight
Symmetrical AWD (All-Wheel Drive), Lineartronic
- Gear ratio : D range (Lineartronic)3.601 – 0.513
- Gear ratio : 1st3.601
- Gear ratio : 2nd2.155
- Gear ratio : 3rd1.514
- Gear ratio : 4th1.092
- Gear ratio : 5th0.843
- Gear ratio : 6th0.667
- Gear ratio : 7th0.557
- Gear ratio : Reverse3.689
Final drive axle ratio3.900
FORESTER 2.0i-S EyeSight
Symmetrical AWD (All-Wheel Drive), Lineartronic
- SteeringRack and pinion, electric power steering system
- Suspension (4-wheel independent) : FrontMacPherson strut type
- Suspension (4-wheel independent) : RearDouble wishbone type
- Minimum turning circle at tyre (radius) (m)5.4
- Brakes : FrontVentilated disc brakes
- Brakes : RearVentilated disc brakes

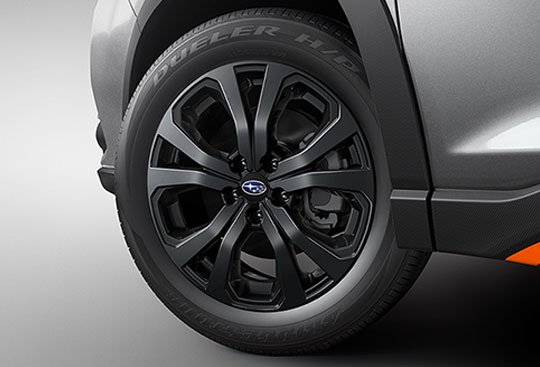

- Tyre/wheel size225/55R18, 18×7“J
